250kW Boiler Containerised

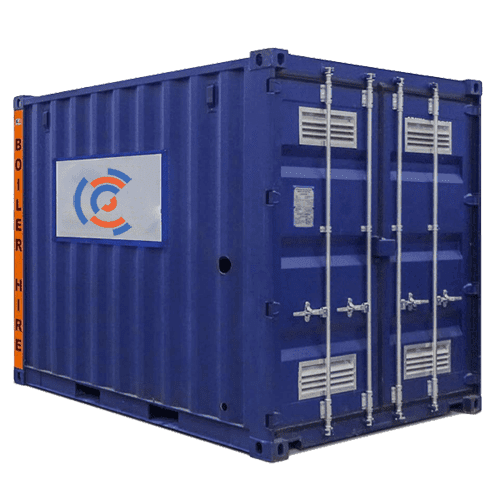

From Cross Hire, the 250kW Containerised Boiler system is the fast, efficient solution that's suited to an extensive range of uses in need of hot water. The boilers are housed in sound and thermally-insulated steel containers while delivering up to 250kW per unit from oil red burners.
With a 250kW Containerised Boiler, you get a unit that is equipped with fork-lift truck pockets and lifting lugs so it can be moved easily on-site. And, with its fast coupling technology on all essential connections, you can be sure of a hassle-free installation.
You can use the 250kW Containerised Boiler with our comprehensive range of thermostatically-controlled fan coils or air handling units. We supply a range of warm air delivery solutions for varied applications and locations.
Note: As our boilers are custom built at our Andover site in the UK, the unit image may differ slightly from the unit you receive.
| Nominal Output (Heating) | 100 - 250 kW |
| Nominal Output (Hot Water) | 100 - 250 kW |
| Temperature Range (Heating) | 60-90°C |
| Temperature Range (Hot Water) | 25-65°C |
| Power Supply | 240v 1ph N+E 50Hz |
| Running Current | 15 Amps |
| Plug Type | 32A 3 Pin BS4343 |
| Maximum Working Pressure | 10 Bar |
| Safety Valves (Heating) | 3/10 Bar |
| Safety Valves (DHW) | 10 Bar |
| Heat Exchanger | Yes (DHW) |
| BMS Outputs | Yes |
| Time Clock | Yes |
| Frost Protection | Yes |
| Design Flow (max) | 6,630 ltrs/hr @ 45°C |
| Pump Capacity | 11,000 ltrs/hr @ 1 Bar |
| Variable Temperature Control | Yes |
| Height of Flue Above Ground Level | 3,500mm |
| Expansion Vessel | 300 ltrs |
| DHW Circulation System | Yes |
| Flexible Hose Connections | Storz Twist Lock |
| Water Connections (Heating) | Flow / Return 3” Storz |
| Water Connections (DHW) | Flow / Cold Feed 2” Storz |
| Recirculation Connection | Return 1” Storz |
| Fuel Type | Diesel Oil or Natural Gas |
| Fuel Connections | External Oil Tank or 1¼” Gas Train |
| Fuel Consumption | 29 ltrs/hr (Oil) |
| Noise Level | 45 dBA @ 10 mtrs |
| Handling Options | Fork Pockets, 4 Point Lifting Eyes |
| Weight | 2000 kg |
| Dimensions (WxDxH) | 2,400 x 3,000 x 2,400mm |
