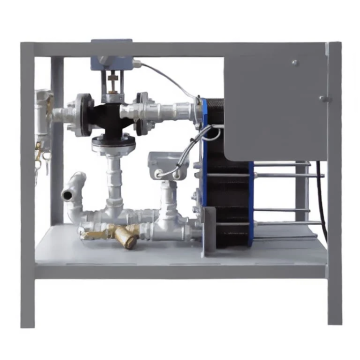

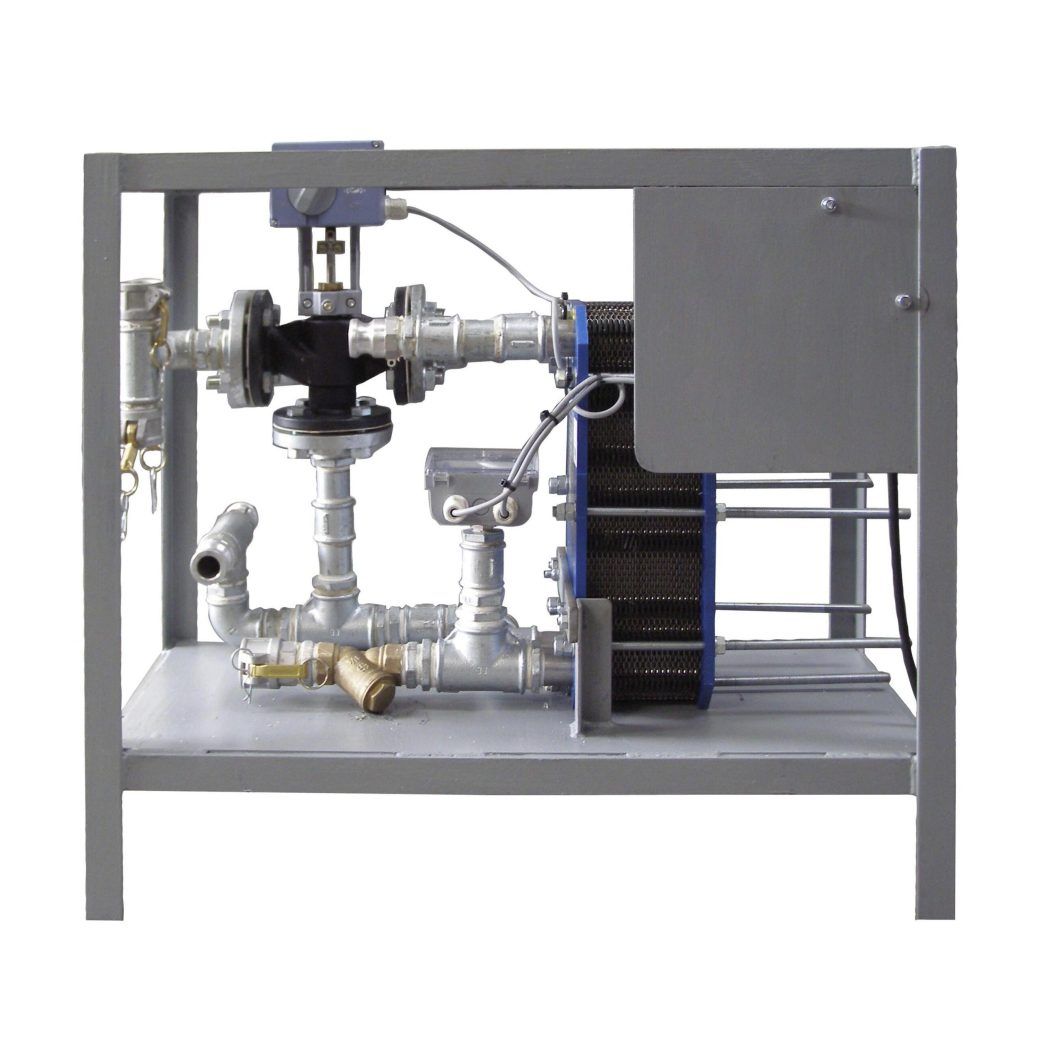

250kW Domestic Hot Water Plate Pack

Cross Hire's 250kW domestic hot water plate pack is a high-efficiency product, providing substantial heating capacity. It is designed to deliver a temporary supply of domestic hot water when you connect it to one of our packaged boiler plants or an existing site boiler.

See more: Plate Packs

Heating Capacity248kW
DHW Inlet Temperature (Design)35°C
DHW Outlet Temperature (Design)60°C
Boiler (Primary) Inlet Temperature80°C
Boiler (Primary) Outlet Temperature59.5°C
Pressure Drop (DHW)0.5 bar
Mains Cold Water Inlet Connection2" Stortz
Hot Water Outlet Connection2" Stortz
DHW Return Connection1" Stortz
Primary Flow and Return Connections3" Stortz
Plate Material316 stainless
DHW FittingsBrass
Power Supply230V / 1ph / 16 amps (Run 3 amps)
ControlsSiemens 3-Way Actuating Valve
Grundfos UPS 15-50N130 3-Speed
Weight (Dry)78kg
Dimensions (W x L x H)1,055 x 590 x 1,025mm
