500kW Boiler Containerised

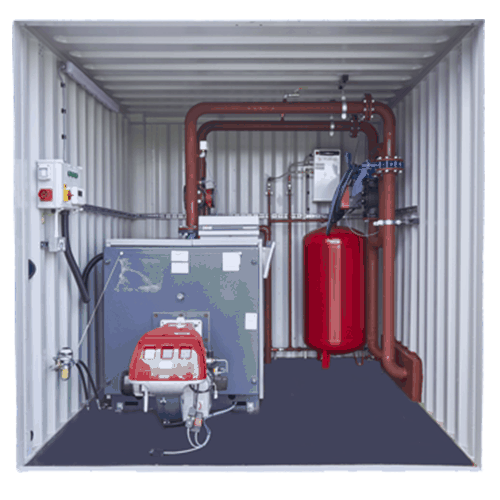

The 500kW Containerised Boiler is an efficient, high-performance solution ideal for rapid deployment in a wide range of situations requiring dependable hot water and heating. Cross Hire containerised boilers are all housed inside vandal, sound, and thermal-proof steel containers, this model delivers up to 500kW per unit from oil burners.
Standard features, of the 500kW containerised boiler, include lifting lugs and forklift pockets for easy on-site mobility. It features fast coupling technology on all key connections for quick, hassle-free installation.
Pair our 500kW containerised boilers with a selection of thermostatically-controlled fan coils or air handling units for versatile warm air delivery. With our range of flexible warm air delivery solutions, you can use this pairing for a wide range of applications – marquees, factories and public buildings, for example.
Looking for a temporary, emergency, or scheduled maintenance heating solution fast? Hire our 500kW Containerised Boiler today for efficient, rapid deployment and hassle-free heating. Contact us now to secure your seamless heating support when you need it most and ensure uninterrupted warmth and hot water for your site!
| Nominal Output (Heating) | 400 - 500 kW |
| Nominal Output (DHW) | 400 - 550 kW |
| Temperature Range (Heating) | 60-90°C |
| Temperature Range (DHW) | 60-85°C |
| Power Supply | 415v 3ph N+E 50Hz |
| Running Current | 10 Amps |
| Plug Type | 16A 5 Pin BS4343 |
| Maximum Working Pressure | 10 Bar |
| Safety Valves (Heating) | 3/10 Bar |
| Safety Valves (DHW) | 10 Bar |
| Heat Exchanger | Yes (DHW) |
| BMS Outputs | Yes |
| Time Clock | Yes |
| Frost Protection | Yes |
| Design Flow Max | 9,800 ltrs/hr @ 45°C |
| Pump Capacity | 22,000 ltrs/hr @ 1 Bar |
| Variable Temperature Control | Yes |
| Height of Flue Above Ground Level | 3,500mm |
| Expansion Vessel | 500 ltrs |
| DHW Circulation System | Yes |
| Flexible Hose Connections | Storz Twist Lock |
| Water Connections | Flow / Return / Cold Feed |
| Water Connections (Heating) | 3” Storz |
| Water Connections (DHW) | 2” Storz |
| Recirculation Connection | 1” Storz |
| Fuel Type | Diesel Oil or Natural Gas |
| Fuel Connections | External Oil Tank or 1½” Gas Train |
| Fuel Consumption | 60 ltrs/hr (Oil) |
| Noise Level | 45 dBA @ 10 mtrs |
| Handling Options | Fork Pockets, 4 Point Lifting Eyes |
| Weight | 3,200 kg |
| Dimensions (WxDxH) | 2,400 x 3,400 x 2,400mm |
