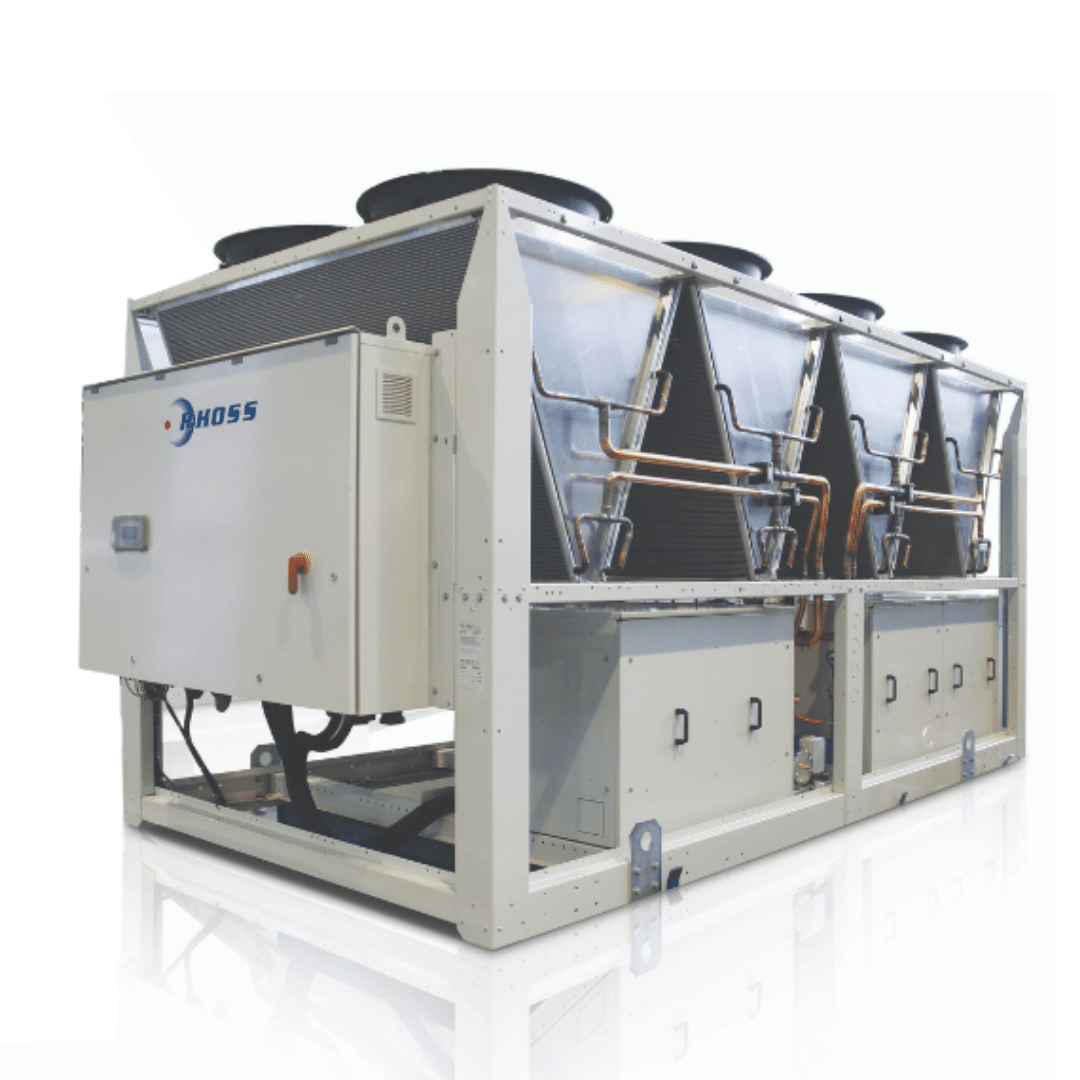

600kW Air Cooled Chiller
| Nominal Cooling Duty | 600 kW |
| Design Duty | 746 kW |
| Inlet Temperature | +12°C |
| Outlet Temperature | +7°C |
| Ambient | +35°C |
| Compressor Power | 336.1kW |
| EER | 2.8 |
| Noise Levels | 64.1 dBA @ 10 Metres |
| Control | Automatic Programmer |
| Power Consumption | 263.57 kW/h |
| Water Connections | 6” Bauer Male & Female |
| Buffer Vessel | 500 Litres |
| Water Pump | NSCE 80-160/185/P25VCCZ |
| Compressors | 6 |
| Compressor Type | Scroll |
| Capacity Steps | 6 |
| Refrigerant Type | R410a |
| No. of Circuits | 2 |
| Noise Level | 64.1 dBA @ 10m |
| Evaporator Type | Plate |
| Number of Circuits | 2 |
| Design Flow | 128.3 m³/h |
| Pressure Drop | 54 kPa |
| Max System Pressure | 4 bar |
| Fan Quantity | 8 |
| Fan Type | Axial |
| Electrical Power | 415vAC 3Ø, N + Eth |
| Full Load Amps | 589.6 Amps |
| Start Amps | 929 A |
| Unit Connection | Hardwired |
| Dry Weight | 7,500 Kg |
| Dimensions (WxLxH) | 2,384 x 6,527 x 2,555 mm |
