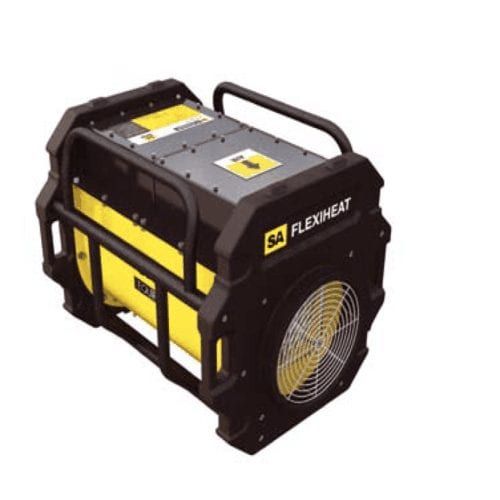

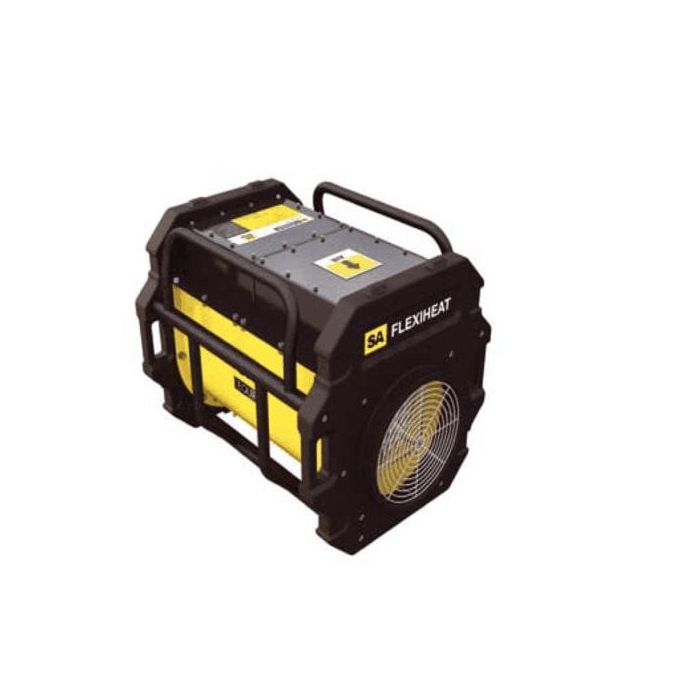

18kW ATEX Rated Heater

The 18kW SA FLEXIHEAT EX Rated Heater withstands the harshest conditions offering robust, reliable and powerful performance for a range of industry applications. The lightweight, ergonomic design offers increased portability across work sites.

Fully certified for use in hazardous zones classified as 1 or 2, the heater comes as ‘Plug & Play’ enabling efficient implementation and use of the system. Hosting optimised heating element design and a solid-state electronic control system, our 440V heater allows you to meet temperature requirements effectively and maintain optimum working conditions in temperatures as low as -40°C. If you’re not using the 18kW EX (ATEX) Heater, you’re out in the cold.

With superbly flexible, adaptable ducting and couplers you can quickly design and implement a system to your precise requirements, in virtually any environment.

Built from anti-static reinforced polymer with integrated steel helix wire for strength, this ducting is ATEX approved for zones 1 and 2. It's been tested to extremes in independent laboratory trials and passes both antistatic and flammability tests.

Good air IN, bad air OUT - You are in control of airflow and temperature in hazardous areas!

Request a quote today for 18kW ATEX heater hire anywhere in Ireland and our equipment experts will review your site, zone classification and power availability to tailor a safe, compliant heating solution for your project needs.

See more: Atex Rated Heaters

  • ATEX certified – Zones 1 & 2 (Gas Group IIB) explosive gas atmospheres
  • 18kW electric heating output for hazardous areas
  • IP65 rated
  • Marine-grade construction or harsh industrial environments
  • Compatible with 300mm anti-static ATEX-approved ducting
  • 3-phase 440V power supply
  • Operates reliably in ambient temperatures down to –40°C
  • Lightweight, portable design for easy movement across work sites
  • Plug-and-play deployment
POWER18kW @ 440VAC 3ph 50Hz
CURRENT DRAWStart Up 32A | Run 26A @ 400VAC
VOLTAGE400 - 440VAC
FREE AIRFLOW2130m3/h @ 50Hz
DUCTING SIZE300mm Diameter
3 PHASE SUPPLY3Ph+E or 3Ph+N+E
AIR SPEED15.5m/s @ 50Hz
TYPICAL TEMPERATURE RISEApprox. 20°C above ambient
OPERATING TEMPERATURE-40°C to +40°C
NOISE LEVEL83dbA @ 1m
WEIGHT55Kg exc. Cable
DIMENSIONS (WxDxH)560mm x 760mm x 560mm
ATEX ZONE1 and 2
