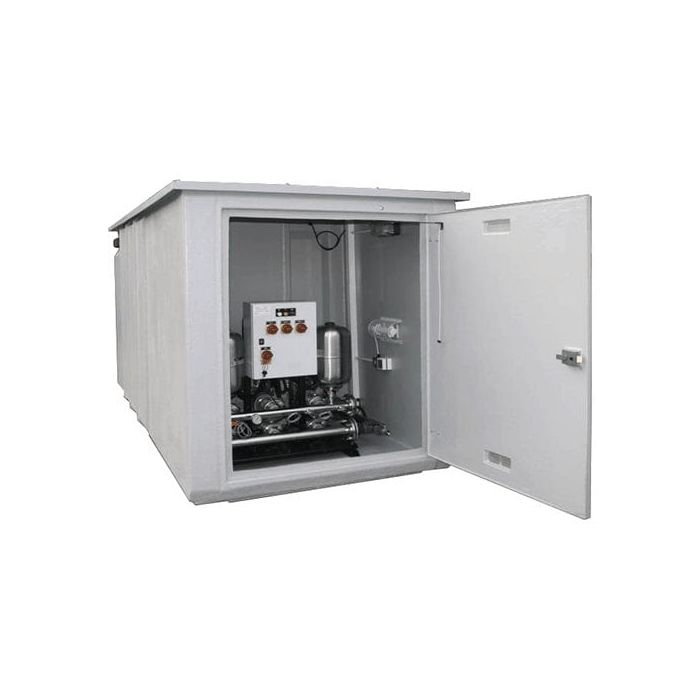

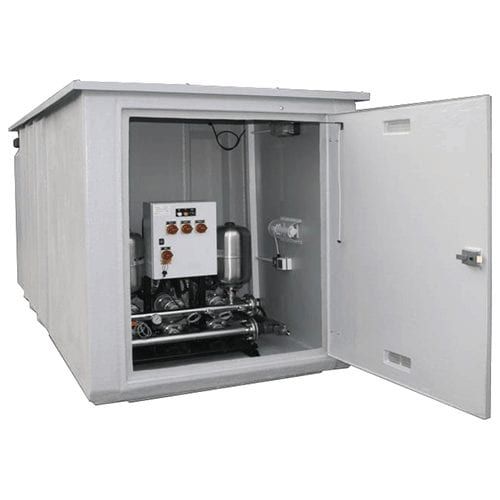

Cold Water Boost System
| Duty Head | 4.2 bar |
| Duty Flow | 4.6ltr/sec |
| Configuration | Duty/Assist/Standby |
| Number of Pumps | 3 |
| Number of Inverters | 3 |
| Number of Transducers | 3 |
| Flow Rate per Pump | 2.3l/sec |
| % of Total Flow | 50% |
| Max. Generated Head | 60m |
| Inlet/Discharge Size | 2" Storz |
| Flange Rating | PN16 |
| Max. Rated System Pressure | 10.0 bar |
| Pressure Vessel Size | 2 x 20 L |
| Power Supply | 400V / 3ph / 50Hz |
| Rated Power (per Motor) | 2.2kW |
| FLC per Motor | 4.9 amps |
| FLC per Set (Pumps Running) | 14.7 amps |
| Drive Type | Inverter Drive |
| IP Rating | 54 |
| Dimensions (W x L x H) | 3,690 x 1,690 x 1,885mm |
