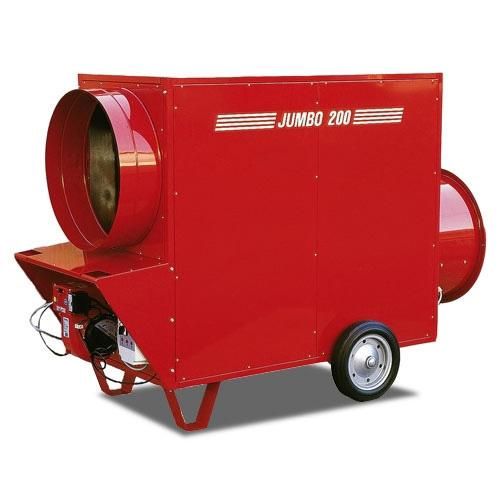

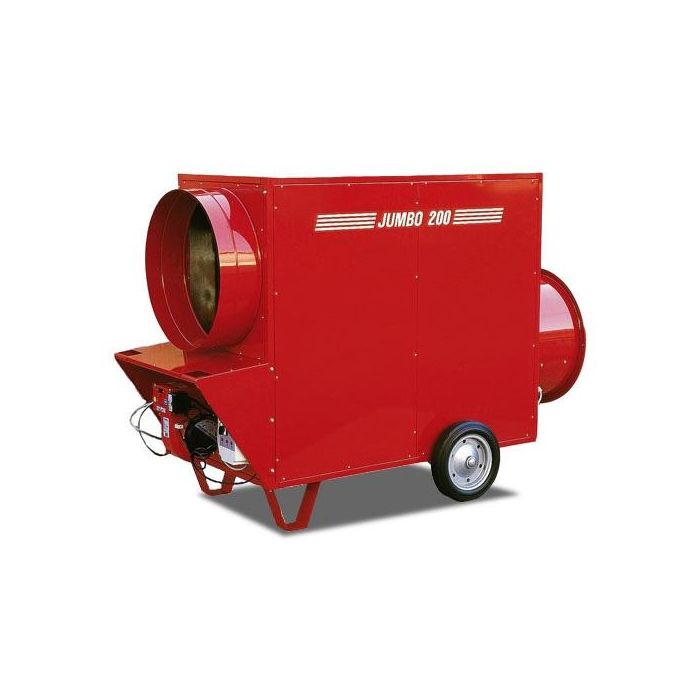

Jumbo Heater 200 High Output Indirect Heater

The Jumbo 200 Indirect Oil Fired Heater is a 198kW / 675000 Btu industrial space heater with thermostat control. Ducting up to 160m is possible with the 2-way or 4-way Splitter spigot outlets, allowing you to connect multiple sections of ducting to the one heater. With no integral fuel tank, an external fuel source is required. The fan-only option can bring in ambient air when needed. This Jumbo space heater is designed for use in medium to large rooms, with ducting, and buildings where a fixed or mobile heating system is required. Heat is produced by combustion in the Jumbo Heater 200 diesel heater. The heat from the smoke is transmitted to the fresh air through the metal walls of the combustion chamber and the heat exchanger of the Jumbo Heater 200. The combustion chamber is of the type where smoke circulates twice. The Jumbo 200 Heater is an extremely powerful, high-performance industrial heater for large spaces and a very popular heater for warehouses and marquee heating.

See more: Industrial Drying

ModelJumbo 200
Heating Duty198 kW
Power Supply415V 3ph 50Hz / 230V 1ph 50Hz
Plug Type32A 5 Pin BS4343 / 16A 3 Pin BS4343
Airflow12500 m³/hr
Duct Size700mm
Max Duct Length160m
Fuel Consumption18.6 L/hr
Tank CapacityExternal
Weight360 kg
Dimensions (W x L x H)985 x 2235 x 1500mm
