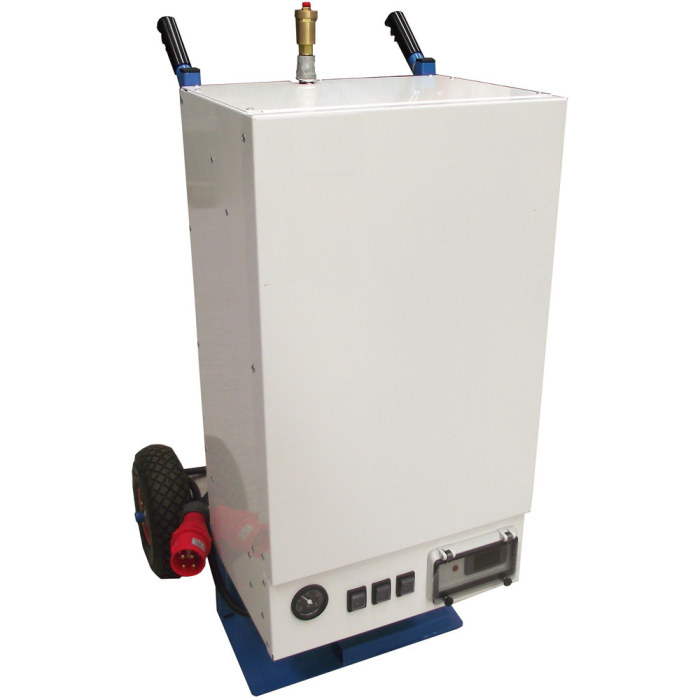

22kW Electric Boiler
| Nominal Output | 5 - 22 kW |
| Temperature Range (Heating) | 20/72°C |
| Temperature Range (DHW) | 25/65°C |
| Fuel Type | Electric |
| Power Supply | 415v 3ph 50Hz |
| Running Current | 31 A |
| Plug Type | 32A 5 Pin BS4343 |
| Maximum Working Pressure (Heating) | 3 Bar |
| Maximum Working Pressure (DHW) | 5 Bar |
| Safety Valve (Heating) | 3 Bar |
| Safety Valve (DHW) | 5 Bar |
| Heat Exchanger | Optional (DHW) |
| BMS Outputs | No |
| Time Clock | No |
| Frost Protection | No |
| Flow (max) | 55 ltrs/min |
| Pump Capacity | 4,500 L/hr @ 0.6 bar |
| Variable Temperature Control | Yes |
| Expansion Vessel | 10 L |
| DHW Circulation System | Yes (separate) |
| Flexible Hose Connections | Storz |
| Water Connections | Flow / Return / Cold Feed 1" |
| Noise Level | 45 dBa @ 1M |
| Weight | 50 kg |
| Dimensions (WxDxH) | 600 x 550 x 1,100 mm |
