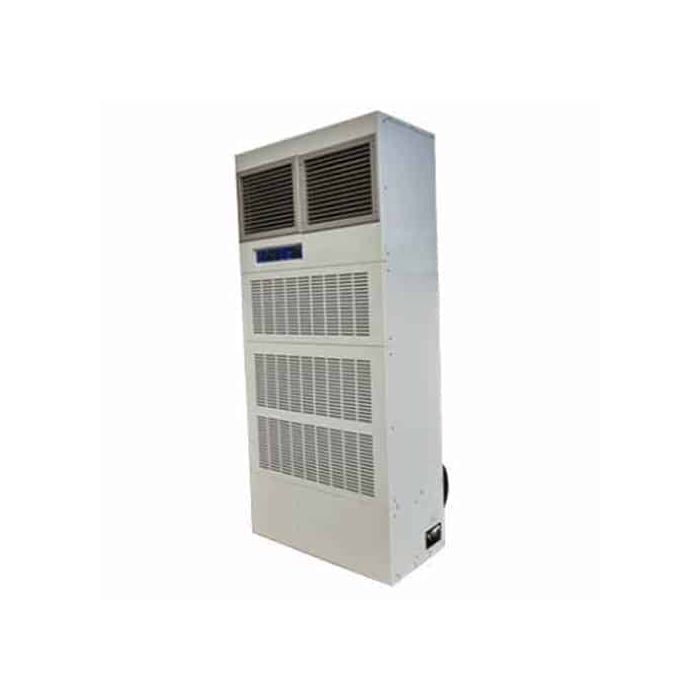

50kW Air Handler

The 50kW Air Handling Unit can be connected to either an existing water circuit or a Cross Hire Boiler/Chiller to provide 50kW of cooling power or 100kW of heating duty. It is specially designed to fit in places where space is at a premium with a footprint of just 80cm x 42.5cm. It can be installed without the need for forklifts or heavy installation gear. Multiple fan speeds and thermostatic control enable the performance to be suited to multiple applications. Key features of the 50kW Air Handling Unit (AHU)
  • Cooling Duty 50kW
  • Heating Duty 100kW50kW
  • 3 fan speeds
  • Thermostat
  • Condensate pump


See more: 50kW AHU

Cooling Output 50kW
Heat Output100kW
Power Supply230V 13A supply
Plug Type13A 3 Pin BS1363 or 16A 3 Pin BS4343
Max Current7.5A
Air Volume4,500 m³/hr
Max Duct Length20 metres (x2 Ducts)
Weight460 kg
Dimensions (WxLxH) mm1,840 x 800 x 425mm
Sound Level 74 dBA @ 1 mtr
Overview
pdf
50kW Air Handler - Product Overview
(Size: 114.1 KB)
×
