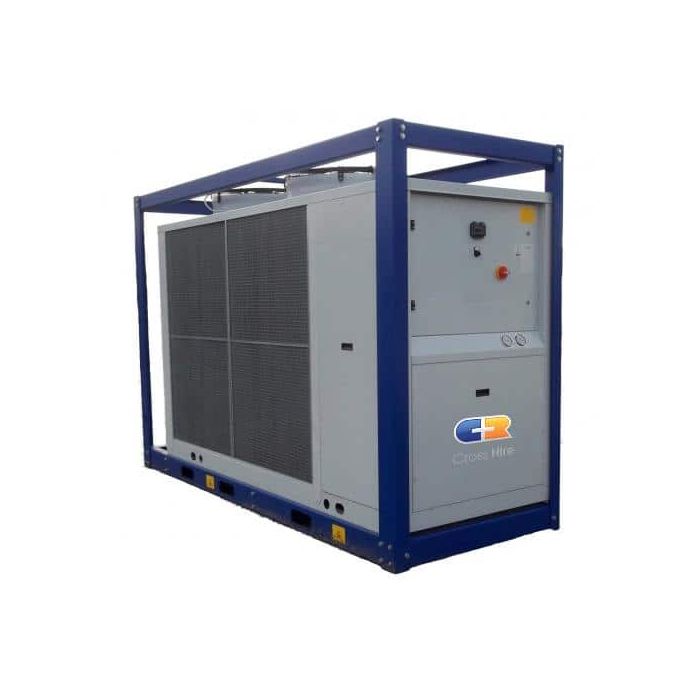

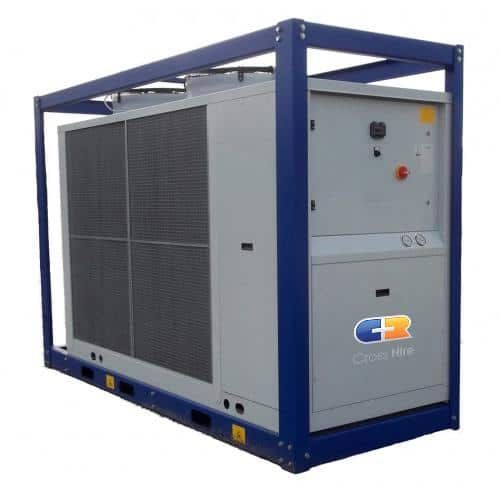

50kW Air Cooled Chiller
The 50kW Chiller can be used for a complete range of cooling applications, which include air conditioning, process cooling and even ice rink creation!
In combination with air handling units, this unit can be used to install a standalone air conditioning system that's suitable for temporary events and permanent installations alike.
The 50kW Chiller is fully-featured, with notable selling points including a water outlet temperature regulator, an automatic fan circuit breaker and a fan speed regulator, as well as internal fan protection grid and electric board heater.
In addition, the 50kW Chiller comes with a water strainer; an electronic expansion valve; a condensing coil grid with metallic filter; a water expansion vessel; and a 3-bar water pump and buffer tank.
| Chiller Model | WBA 1053 |
| Duty | 50kW |
| Inlet Temperature | 12°C |
| Outlet Temperature | 7°C |
| Ambient Temperature | 30°C |
| Compressor Power | 16.5 kW |
| Design Flow Rate | 8.7 m³/hr |
| Power Supply | 415v / 50 Hz / AC 3Ø, N + Eth |
| Running Amps | 44.8 Amps |
| Water Connection | 2"" Bauer Male & Female |
| Refrigerant | R410a |
| No. of Circuits (Refrigerant) | 1 |
| Evaporator Type | Plate |
| No. of Circuits (Evaporator) | 1 |
| Max System Pressure | 110 kPa |
| Pressure Drop | 33 kPa |
| Buffer Tank Capacity | 200 Litres |
| Water Pump | Yes - Lowara CA200/35/P |
| Compressor Type | Scroll |
| No. of Compressors | 2 |
| Compressor Power | 16.5 kW |
| Capacity Steps | 2 |
| EER | 3.2 |
| Condensor Fan Quantity | 2 |
| Condensor Fan Type | Axial |
| Control | Automatic Programme |
| Full Load Amps | 144 Amps |
| Start Amps | 144 Amps |
| Total Current (LPA) | Not Provided |
| Unit Connection | 5 Pin 63A BS4343 |
| Noise Level | 47 dB(A) @ 10 m |
| Weight | 620 kg |
| Dimensions (W x L x H) | 1,300 x 3,150 x 2,030 mm |
