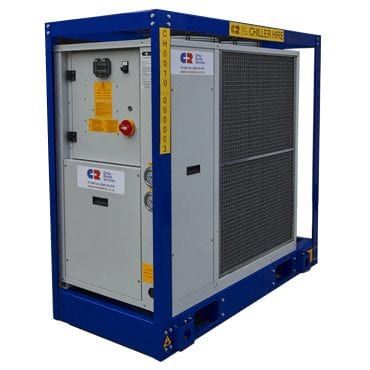

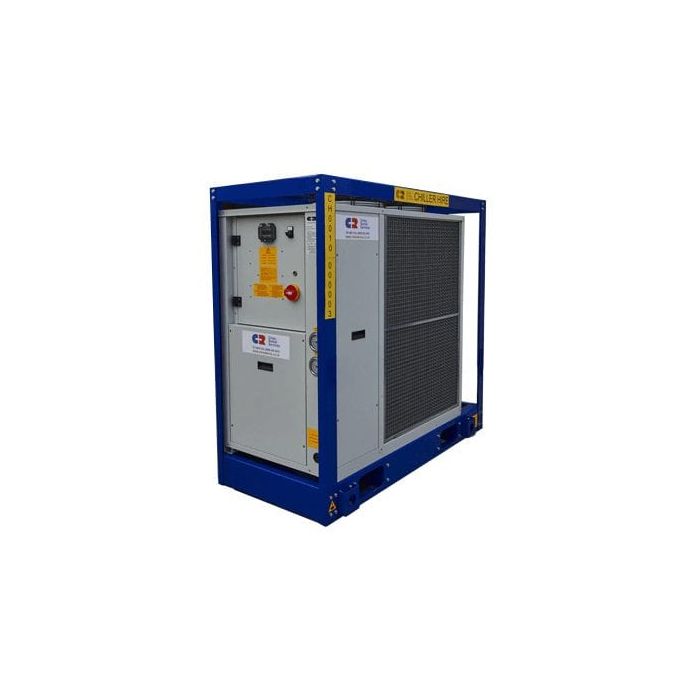

20kW Air Cooled Chiller
| Nominal Cooling Duty | 20 kW |
| Design Duty | 19.7 kW |
| Inlet Temperature | +12°C |
| Outlet Temperature | +7°C |
| Ambient | +35°C |
| Compressor Power | 6.4 kW |
| EER | 3.1 |
| Noise Levels | 47 dBA @ 10 Metres |
| Control | Automatic Programmer |
| Power Consumption | 9 kW |
| Water Connections | 1¼” Camlock |
| Buffer Vessel | 110 L |
| Water Pump | Lowara CA70/34/D |
| Compressors | 1 |
| Compressor Type | Scroll |
| Capacity Steps | 1 |
| Refrigerant Type | R410a |
| No. of Circuits | 1 |
| Evaporator Type | Plate |
| Number of Circuits | 1 |
| Design Flow | 3.4 m³/h |
| Pressure Drop | 54 kPa |
| Max System Pressure | 4 bar |
| Fan Quantity | 1 |
| Fan Type | Axial |
| Electrical Power | 415vAC 3Ø, N + Eth |
| Full Load Amps | 15.9 A |
| Start Amps | 96 A |
| Unit Connection | 5 Pin 32A |
| Dry Weight | 430 kg |
| Dimensions (WxLxH) | 1,052 x 2,242 x 1,650mm |
