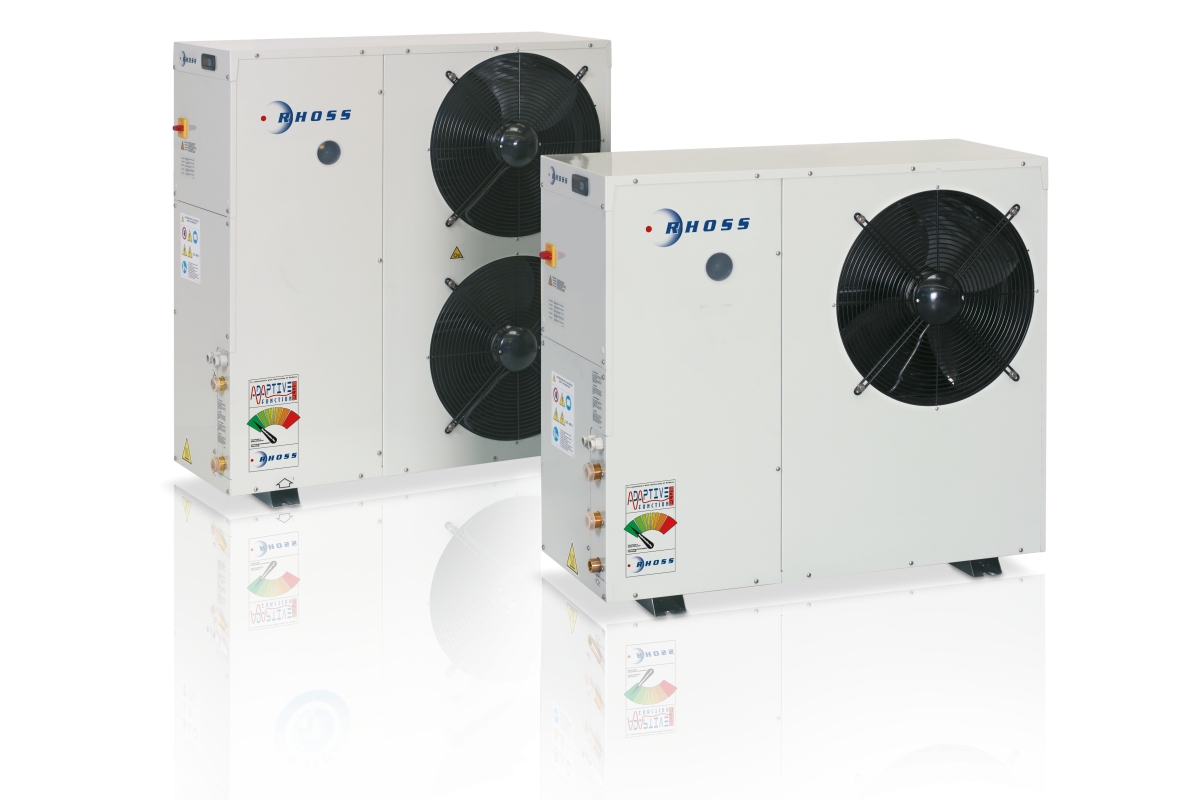

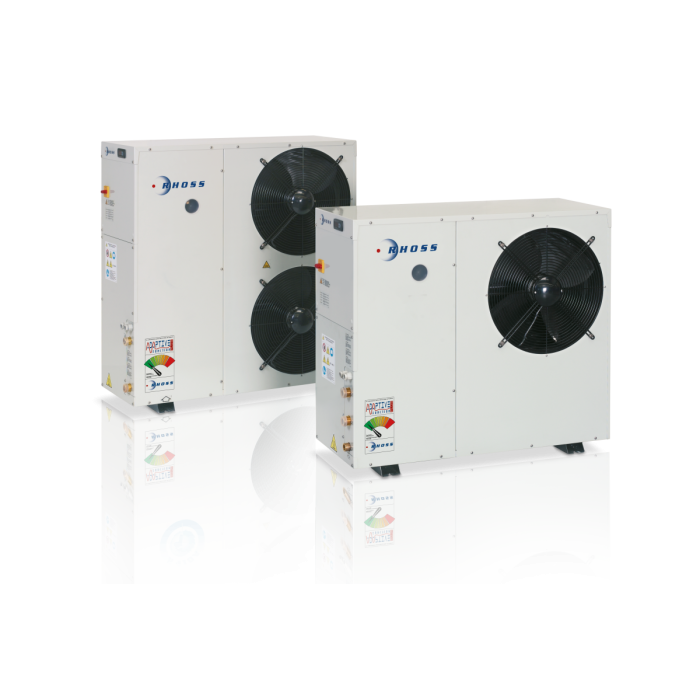

10kW Chiller
| Detail | 10kW Chiller |
| Chiller Cooling Capacity | 11.1 kW |
| Inlet Temperature | 12°C |
| Outlet Temperature | 7°C |
| Ambient | 35°C |
| Compressors | 1 |
| Compressor Type | Scroll |
| Capacity Steps | 1 |
| Noise Level | 47 [dB(A)] @ 10 metres |
| Circuits | 1 n. |
| Control | Automatic Programme |
| Buffer Tank Capacity | 45 L |
| Water Connection | 1 1/2" BSP |
| Water Pump | Yes |
| Refrigerant Type | R410a |
| No of Circuits | 1 |
| Evaporator Type | Plate |
| No of Circuits | 1 |
| Design Flow | 1.9 m³/h |
| Pressure Drop | 73 kPa |
| Condensor Fan Quantity | 2 |
| Fan Type | Axial |
| Electrical supply | 220v 1ph / 50 Hz, N |
| Power Input | 8.7 kW |
| Full Load Amps | 21 A |
| Unit Connection | 16amp 1ph |
| Energy Class | A+ |
| Dimensions (L x H x D) | 1,295 x 1,295 x 380 mm |
| Dry Weight | 166 kg |
