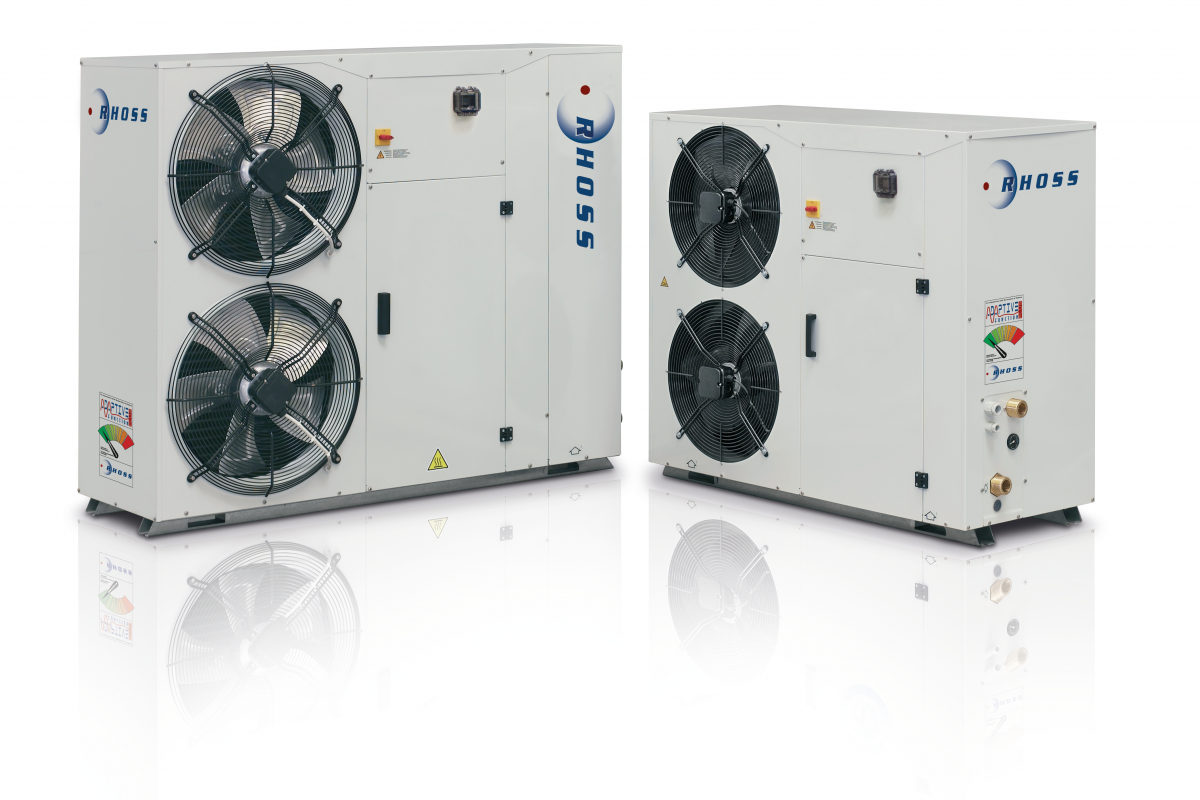

20kW Chiller
| Detail | 20kW Chiller | |
| Chiller Cooling Capacity | 22.3 [kW] | |
| Inlet Temperature | 12 [°C] | |
| Outlet Temperature | 7 [°C] | |
| Ambient | 35 [°C] | |
| Compressors | 1 | |
| Compressor Type | Scroll | |
| Capacity Steps | 1 | |
| Noise Level | 52 [dB(A)] @ 10 metres | |
| Circuits | 1 n. | |
| Control | Automatic Programme | |
| Buffer Tank Capacity | 45 [L] | |
| Water Connection | 1 1/2" BSP | |
| Water Pump | Yes | |
| Refrigerant Type | R410a | |
| No of Circuits | 1 | |
| Evaporator Type | Plate | |
| No of Circuits | 1 | |
| Design Flow | 3.9 [m³/h] | |
| Pressure Drop | 93 [kPa] | |
| Condensor | Fan Quantity | 2 |
| Fan Type | Axial | |
| Electrical supply | 415 V / 3 ph / 50 Hz, N | |
| Power Input | 8.7 kW | |
| Full Load Amps | 21A | |
| Unit Connection | Hard Wired 32A | |
| Energy Class | A++ | |
| Dimensions (L x H x D) | 1,522 x 1,290 x 600 mm | |
| Dry Weight | 278 kg |
