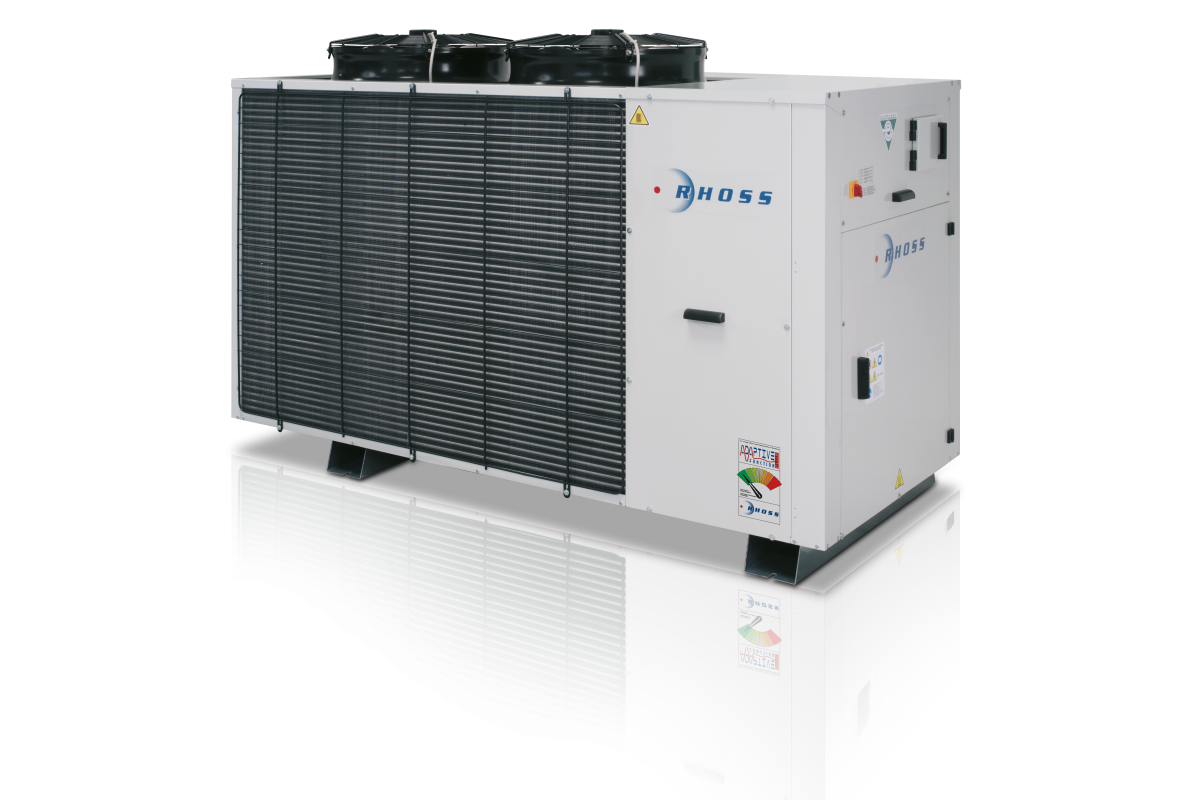

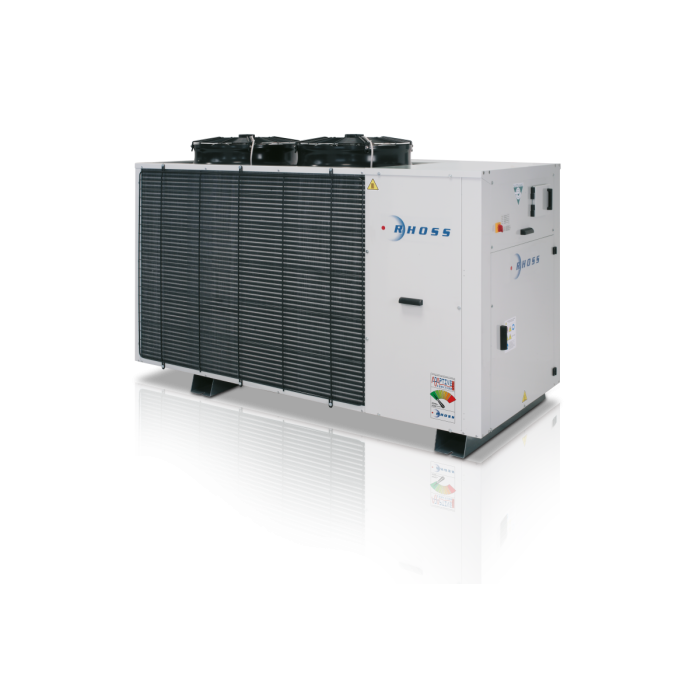

50kW Chiller
| Detail | 50kW Chiller |
| Chiller Cooling Capacity | 54 [kW] |
| Inlet Temperature | 12 [°C] |
| Outlet Temperature | 7 [°C] |
| Ambient | 35 [°C] |
| Compressors | 2 |
| Compressor Type | Scroll |
| Capacity Steps | 2 |
| Noise Level | 56 [dB(A)] @ 10 M |
| Circuits | 1 n. |
| Dimensions (L x H x D) | 2,315 x 1,570 x 1,000 [mm] |
| Dry Weight | 750 [kg] |
| Control | Automatic Programme |
| Buffer Tank Capacity | 150 [L] |
| Available nominal head of standard electric pump | 102 [kPa] |
| Water Connection | 2" Bauer Male & Female |
| Water Pump | Yes |
| Refrigerant Type | R410a |
| No of Circuits | 1 |
| Evaporator Type | Plate< |
| No of Circuits | 1 |
| Design Flow | 9.4 [m³/h] |
| Pressure Drop | 93 [kPa] |
| Condensor Fan Quantity | 2 |
| Fan Type | Axial |
| Electrical supply | 415 V / 3 ph / 50 Hz, N + Eth |
| Power Input | 18.7 [kW] |
| Full Load Amps | 49 [A] |
| Unit Connection | 5 Pin 63 [A] BS4343 |
