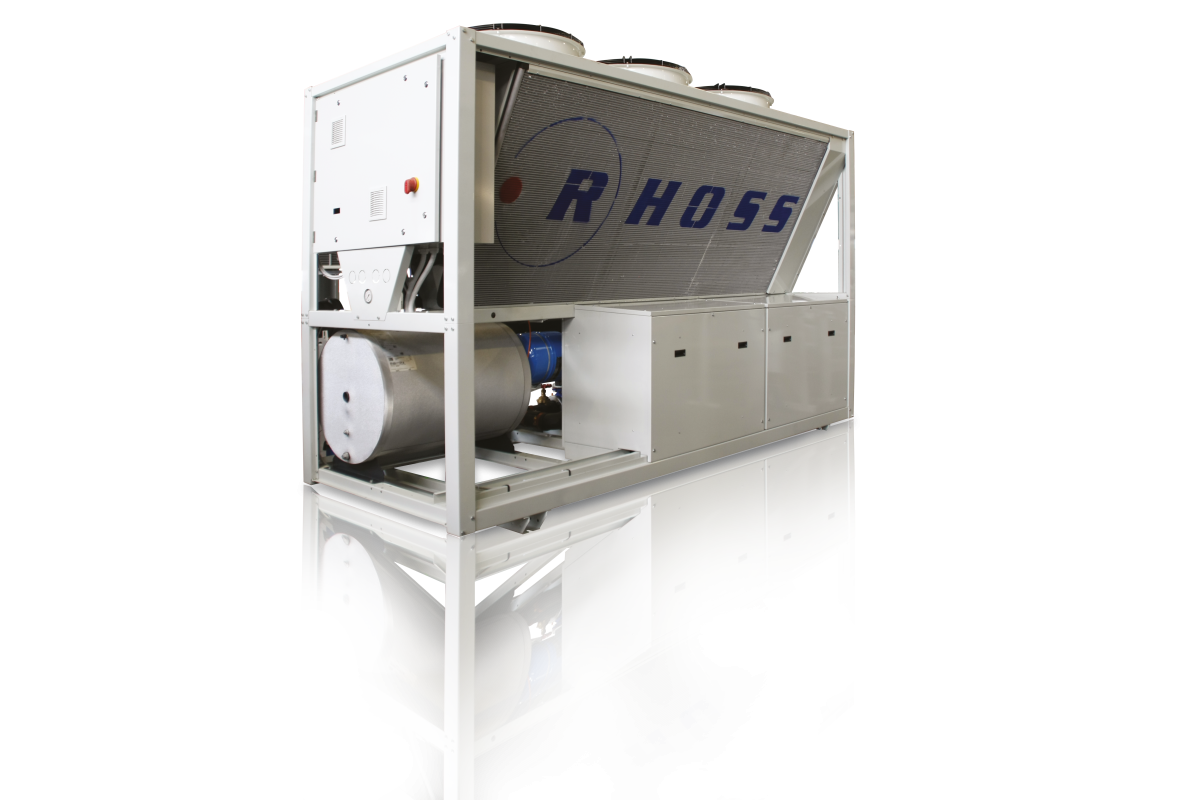

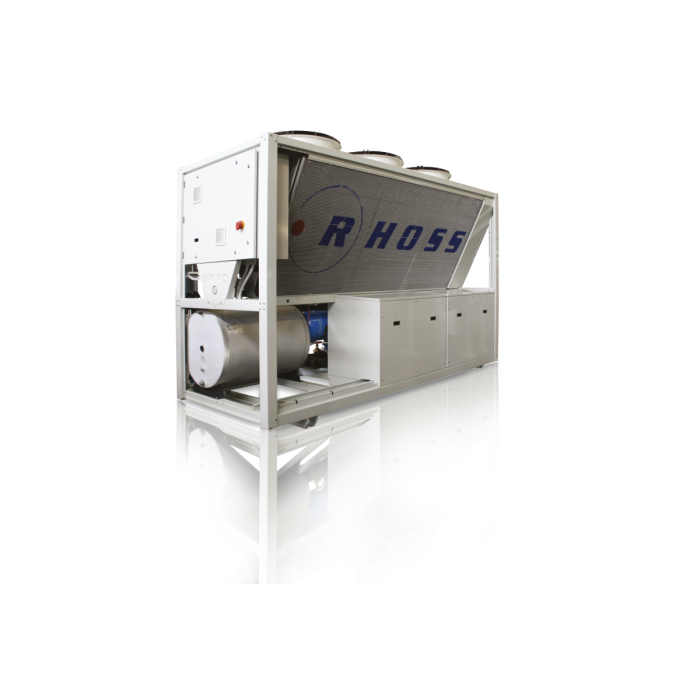

150kW Air Cooled Chiller
| Detail | 150kW Chiller | |
| Chiller Cooling Capacity | 150 [kW] | |
| Inlet Temperature | 12 [°C] | |
| Outlet Temperature | 7 [°C] | |
| Ambient | 35 [°C] | |
| Compressors | 2 | |
| Compressor Type | Scroll | |
| Capacity Steps | 3 | |
| Noise Level | 57 [dB(A)] @ 10 M | |
| Circuits | 2 n. | |
| Control | Automatic Programme | |
| Buffer Tank Capacity | 300 [L] | |
| Water Connection | 4" Bauer Male & Female | |
| Water Pump | Yes | |
| Refrigerant Type | R410a | |
| No of Circuits | 2 | |
| Evaporator | Type | Plate |
| No of Circuits | 2 | |
| Design Flow | 17.3 [m³/h] | |
| Pressure Drop | 147 [kPa] | |
| Condensor | Fan Quantity | 3 |
| Fan Type | Axial | |
| Electrical supply | 400 V / 3 ph / 50 Hz | |
| Power Input | 45.4 [kW] | |
| Full Load Amps | 108.5 [A] | |
| Unit Connection | 5 Pin 125[A] BS4343 | |
| Dimensions (L x H x D) | 3,600 x 2,440 x 1,350 [mm] | |
| Dry Weight | 1,390 [kg] |
