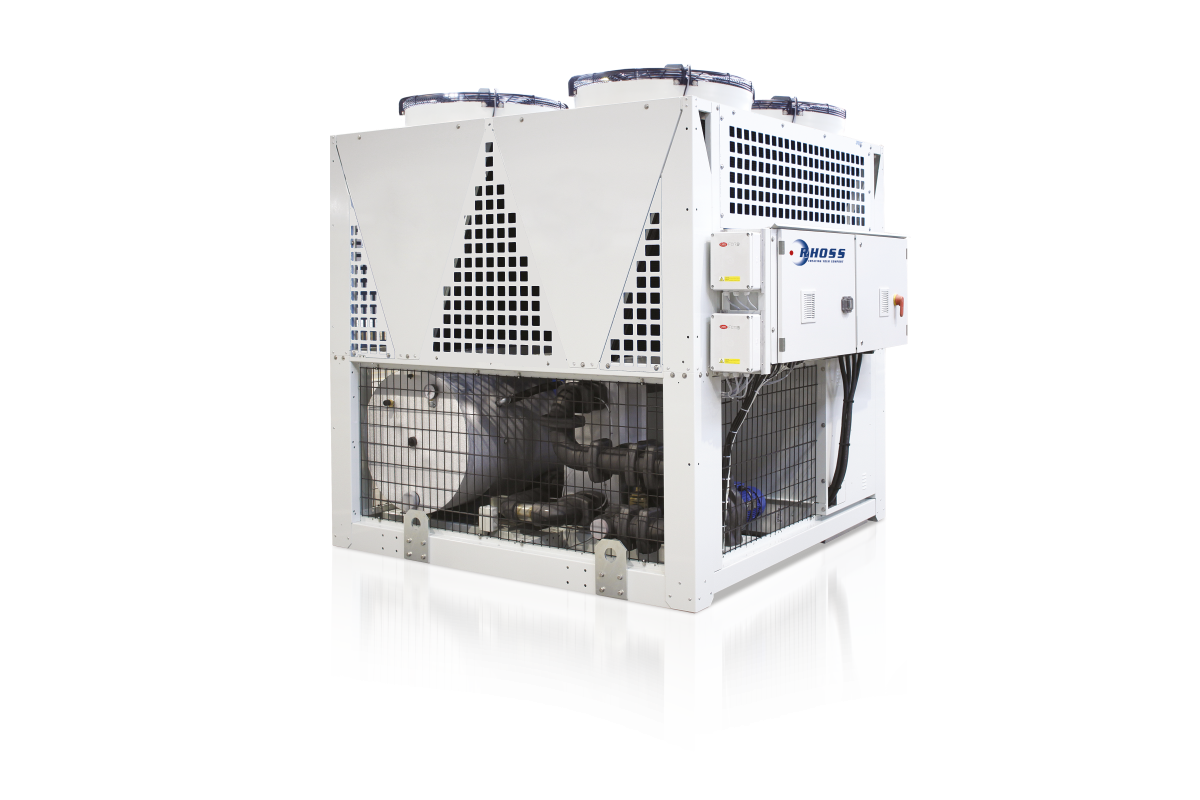

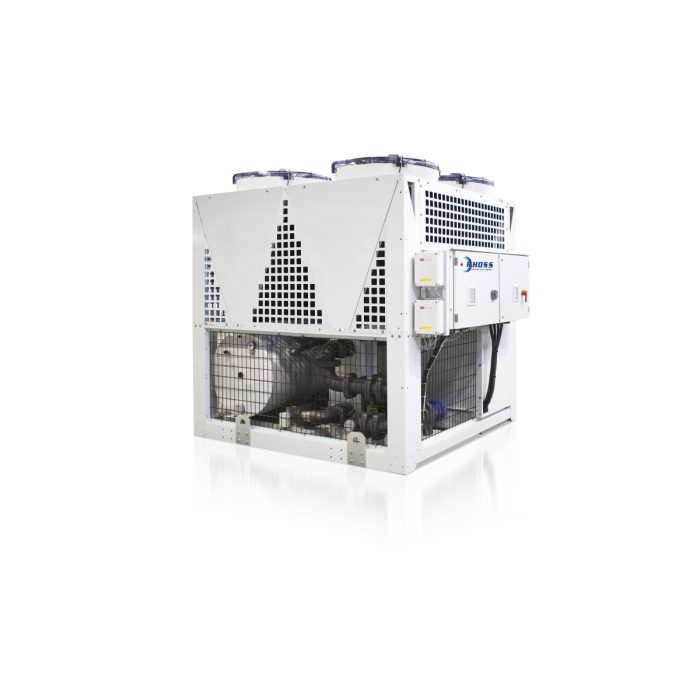

250kW Air Cooled Chiller
| Detail | 250kW Chiller | |
| Performance Data | Chiller Cooling Capacity | 250 [kW] |
| Inlet Temperature | 12 [°C] | |
| Outlet Temperature | 7 [°C] | |
| Ambient | 35 [°C] | |
| Compressors | 4 | |
| Compressor Type | Scroll | |
| Capacity Steps | 4 | |
| Noise Level | 60 [dB(A)] @ 10 metres | |
| Sound power | 92 [dB(A)] | |
| Circuits | 2 n. | |
| DIMENSIONS AND WEIGHTS | ||
| Dimensions (L x H x D) | 4,550 x 1,350 x 2,440 [mm] | |
| Dry Weight | 1,960 [kg] | |
| Control | Automatic Programme | |
| Buffer Tank Capacity | 500 [L] | |
| Water Connection | 4" Bauer Male & Female | |
| Water Pump | Yes | |
| Refrigerant | Type | R410a |
| No of Circuits | 2 | |
| Evaporator | Type | Plate |
| No of Circuits | 2 | |
| Design Flow | 44.3 [m³/h] | |
| Pressure Drop | 78 [kPa] | |
| Condensor | Fan Quantity | 4 |
| Fan Type | Axial | |
| Electrical | Electrical supply | 400 V / 3 ph / 50 Hz, N + Eth |
| Power Input | 80 [kW] | |
| Full Load Amps | 194.6 [A] | |
| Unit Connection | Hard Wired |
