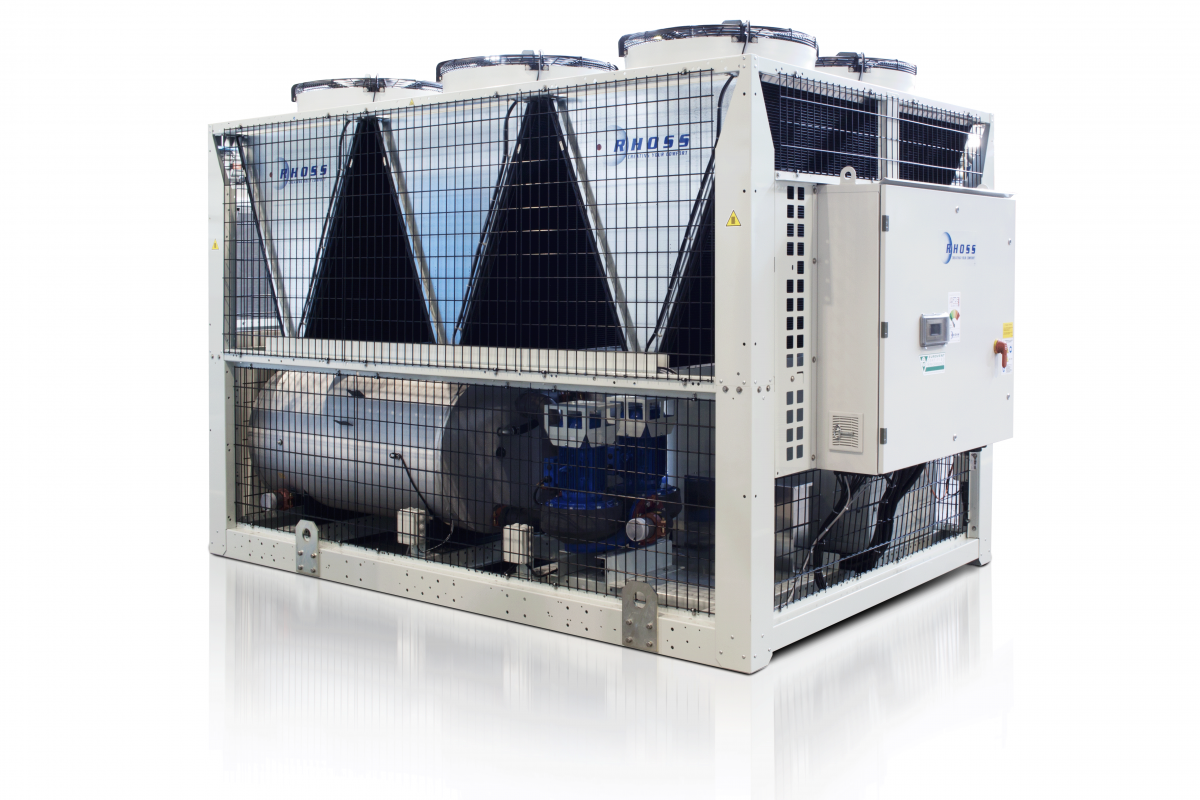

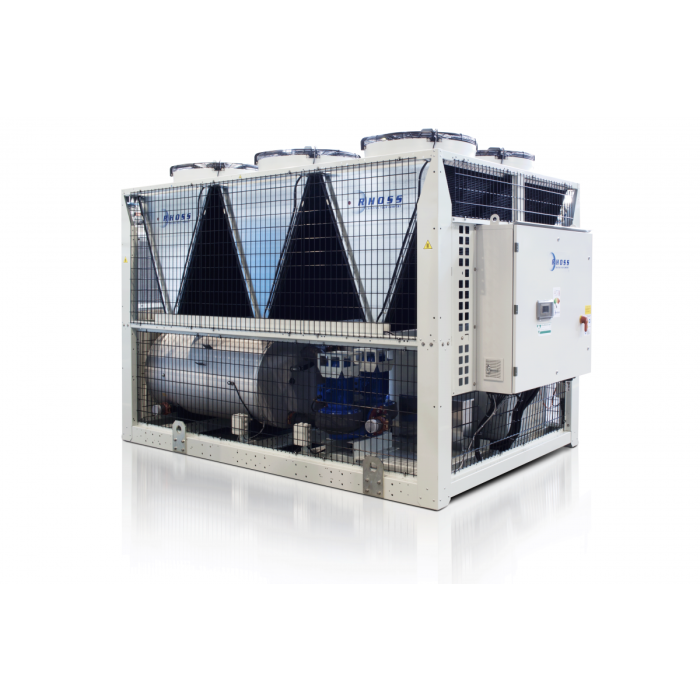

400kW Air Cooled Chiller
| Detail | 400kW Chiller |
| Chiller Cooling Capacity | 400 [kW] |
| Inlet Temperature | 12 [°C] |
| Outlet Temperature | 7 [°C] |
| Ambient | 35 [°C] |
| Compressors | 4 |
| Compressor Type | Scroll |
| Capacity Steps | 4 |
| Noise Level | 63 [dB(A)] @ 10M |
| Circuits | 2 n. |
| Control | Automatic Programme |
| Buffer Tank Capacity | 700 L |
| Water Connection | 4" Bauer Male & Female |
| Water Pump | Yes - Lowara FHE40/200/55P |
| Refrigerant Type | R410a |
| No of Circuits | 2 |
| Evaporator Type | Plate |
| No of Circuits | 2 |
| Design Flow | 41.8 [m³/h] |
| Pressure Drop | 139 [kPa] |
| Condensor Fan Quantity | 6 |
| Fan Type | Axial |
| Electrical supply | 400 V / 3 ph / 50 Hz, N + Eth |
| Power Input | 118.9 kW |
| Full Load Amps | 315 A |
| Unit Connection | Hard Wired |
| Dimensions (L x H x D) | 3,740 x 2260 x 2,450 mm |
| Dry Weight | 2,415 kg |
