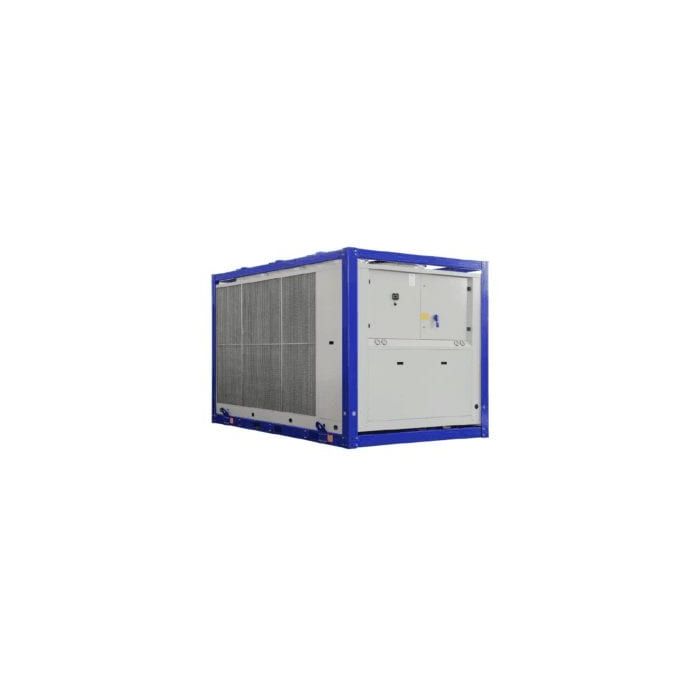

500kW Air Cooled Chiller
| Duty | 500kW |
| Inlet Temperature | 12°C |
| Outlet Temperature | 7°C |
| Ambient | 30°C |
| Compressor Power | 202.8 kW |
| EER | 2.5 |
| Compressors | 6 |
| Compressor Type | Scroll |
| Capacity Steps | 6 |
| Noise Level | 60 dBA @ 10 Metres |
| Dry Weight | 3500kg |
| Dimensions | (LxWxH) 5250 x 2505 x 2620 mm |
| Control | Automatic Programme |
| Buffer Tank Capacity | 500 Litres |
| Water Connection | 4” Bauer Male & Female |
| Water Pump | Yes – Lowara FHE60-160/110 |
| Refrigerant | Type R410a |
| No. Of Circuits | 2 |
| Evaporator Type | Plate |
| No Of Circuits | 2 |
| Design Flow | 82.7m3/hour |
| Pressure Drop | 35 kPa |
| Max System Pressure | 208 kPa |
| Condensor Fan Quantity | 8 |
| Fan Type | Axial |
| Max Air Volume | 15.5 m3/second |
| Power Supply | 415vAC 3Ø, N + Eth |
| Full Load Amps | 394 Amps |
| Unit Connection | Hard Wired |
| Power Consumption | 231 kW/h |
| Start Amps | 648 Amps |
