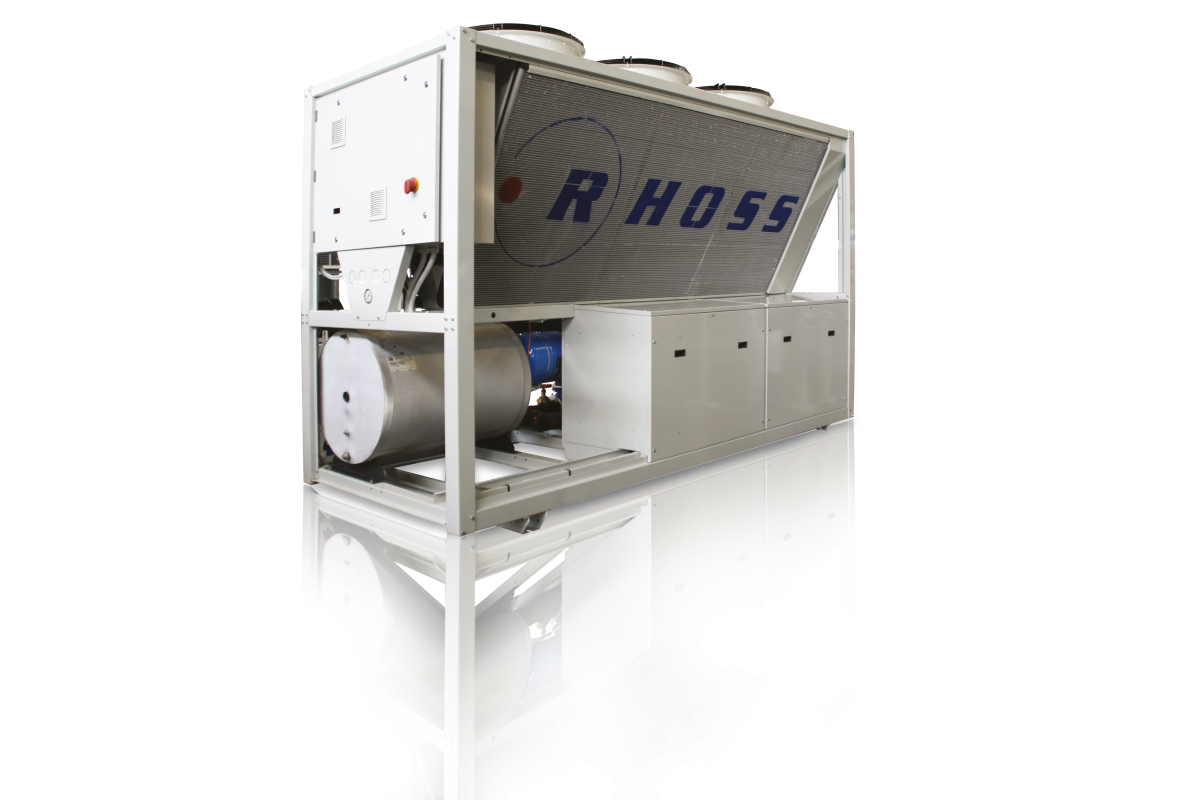

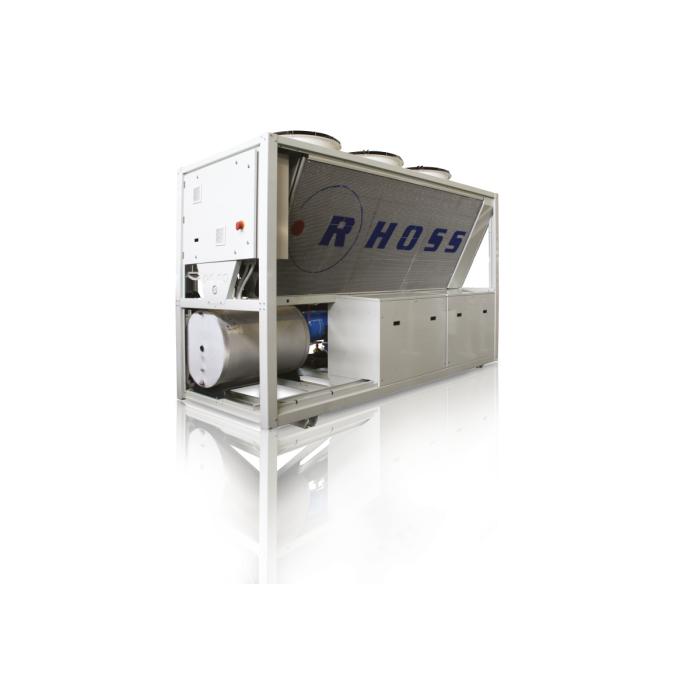

300kW Chiller
| Detail | 300kW Chiller | |
| Performance Data | Chiller Cooling Capacity | 300 [kW] |
| Inlet Temperature | 12 [°C] | |
| Outlet Temperature | 7 [°C] | |
| Ambient | 35 [°C] | |
| Compressors | 4 | |
| Compressor Type | Scroll | |
| Capacity Steps | 4 | |
| Noise Level | 60 [dB(A)] @ 10 M | |
| Circuits | 2 n. | |
| Control | Automatic Programme | |
| Buffer Tank Capacity | 700 [L] | |
| Water Connection | 4" Bauer Male & Female | |
| Water Pump | Yes - Lowara FHE40/200/55P | |
| Refrigerant | Type | R410a |
| No of Circuits | 2 | |
| Evaporator Type | Plate | |
| No of Circuits | 2 | |
| Design Flow | 51.8 [m³/h] | |
| Pressure Drop | 93 [kPa] | |
| Condensor Fan Quantity | 6 | |
| Fan Type | Axial | |
| Electrical supply | 400 V / 3 ph / 50 Hz, N + Eth | |
| Power Input | 109.6 [kW] | |
| ull Load Amps | 250 [A] | |
| Unit Connection | Hard Wired | |
| Dimensions (L x H x D) | 4,800 x 2,090 x 2,030 [mm] | |
| Dry Weight | 2,830 [kg] |
