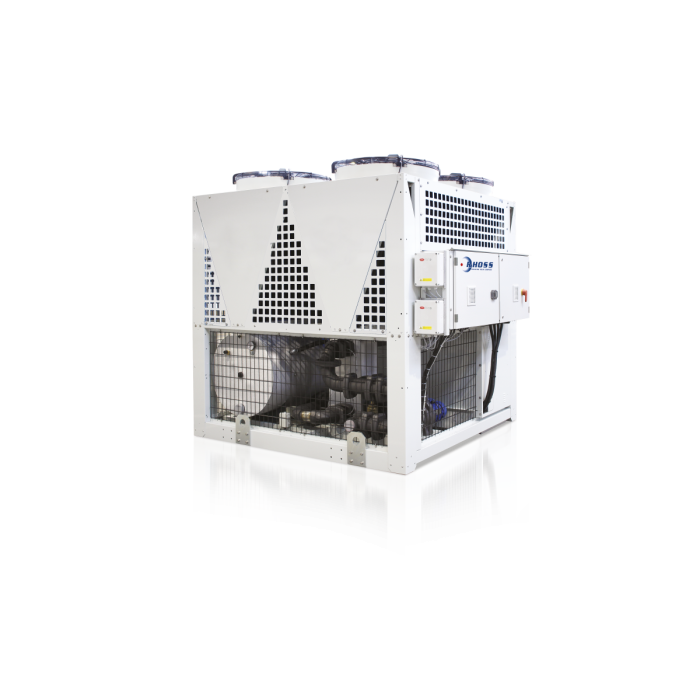

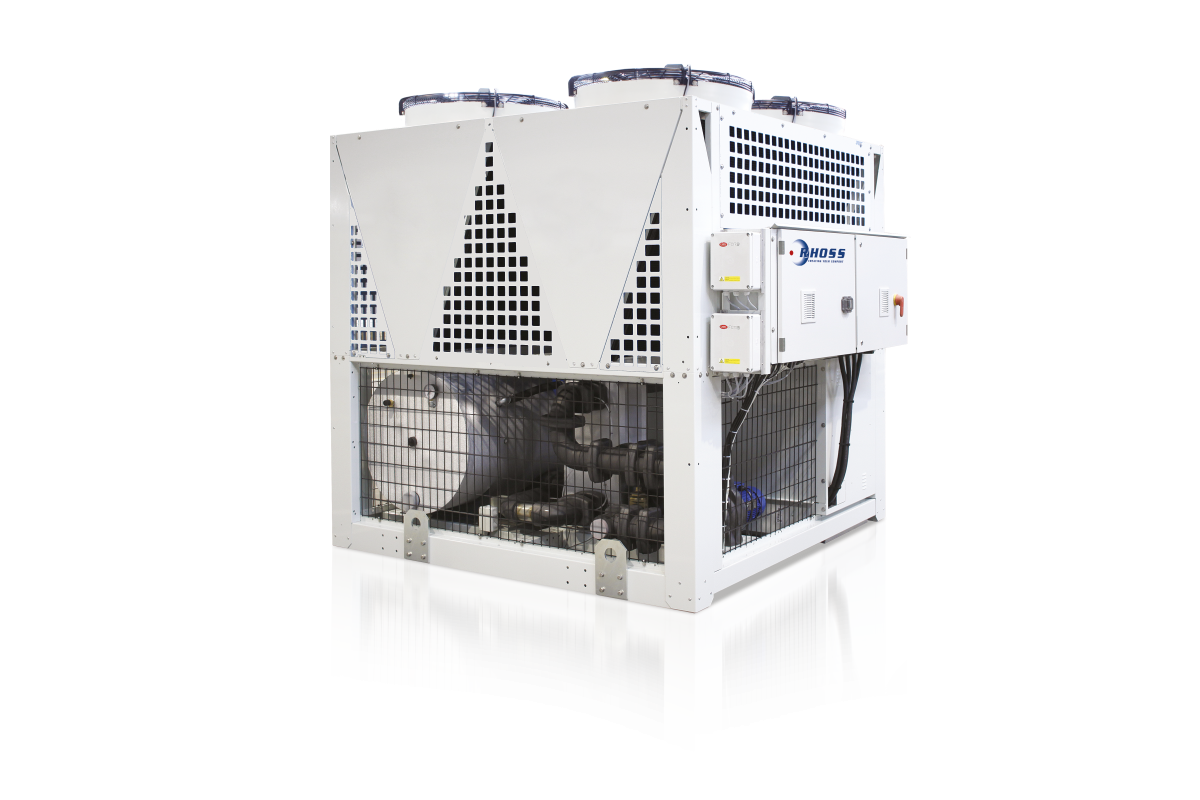

350kW Air Cooled Chiller

This 350kW packaged air-cooled water chiller with axial fans delivers reliable cooling performance, in a compact design, for demanding commercial and industrial applications. Engineered to handle significant cooling loads, this unit offers optimal energy efficiency across sectors from manufacturing to warehousing and more. Ideal for both temporary and emergency use, the 350kW chiller is built to deliver stability and support in critical situations, when it matters most. Powered by scroll hermetic compressors and R410A refrigerant, this chiller is engineered for efficiency with extended operating limits to meet diverse cooling demands. Simplified installation is supported with optional pumping unit accessories, while the integrated MASTER/SLAVE control enables seamless management of up to four units in parallel. The 350kW Chiller provides reliable cooling with ease of operation, making it a versatile choice for various high-demand environments. Contact us today to find out how to hire it now!

See more: Process Cooling

Detail350kW Chiller
Chiller Cooling Capacity 350 [kW]
Inlet Temperature12 [°C]
Outlet Temperature7 [°C]
Ambient35 [°C]
Compressors4
Compressor TypeScroll
Capacity Steps4
Noise Level62 [dB(A)] @ 10 M
Circuits2 n.
ControlAutomatic Programme
Buffer Tank Capacity700 [L]
Water Connection4" Bauer Male & Female
Water PumpYes - Lowara FHE40/200/55P
Refrigerant TypeR410a
No of Circuits2
Evaporator TypePlate
No of Circuits2
Design Flow63.5 [m³/h]
Pressure Drop55 [kPa]
Condensor Fan Quantity6
Fan TypeAxial
ElectricalElectrical supply400 V / 3 ph / 50 Hz, N + Eth
Power Input114.19 [kW]
Full Load Amps283 [A]
Unit ConnectionHard Wired
Dimensions (L x H x D)3,650 x 2,260 x 2,450 mm
Dry Weight2,260 [kg]
