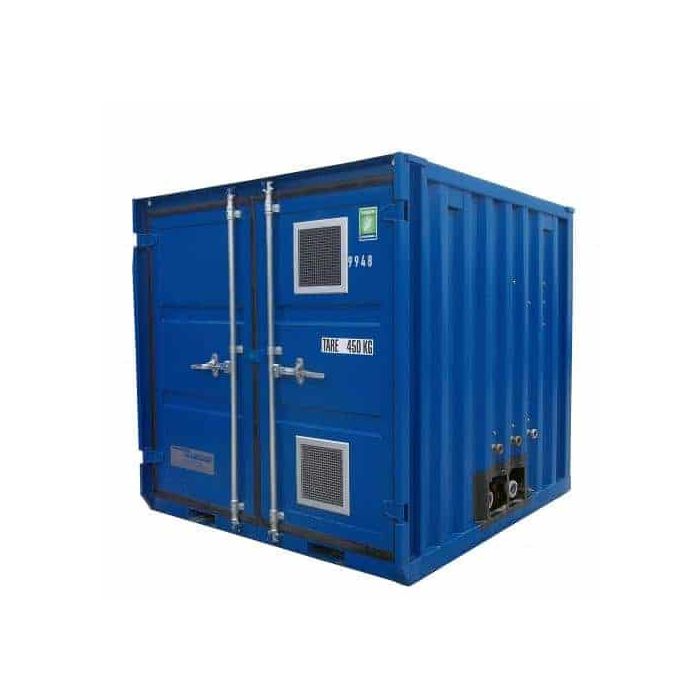

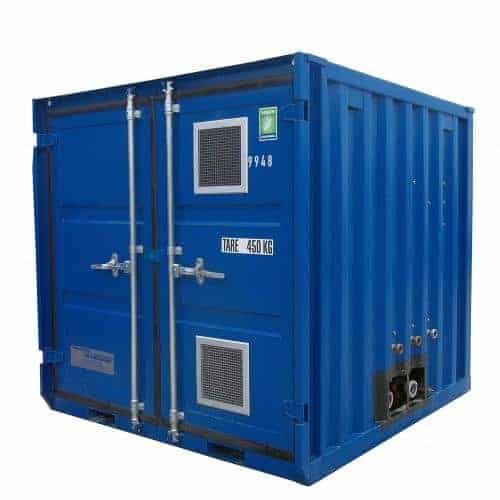

100kW Containerised Boiler
A 100kW Containerised Boiler is the ideal solution for situations where space is tight. This is a compact unit that can deliver both heating and domestic hot water for low duty requirements, while only taking up a small footprint.
In addition to its space-saving attributes, the compact design and low weight of this 100kW Containerised Boiler are features that make transportation to and from site a much simpler task.
The 100kW Containerised Boiler is available with an oil or gas fired burner and is perfectly paired with our 700-litre external fuel tank. This tank also takes up a low footprint, while proving at least 56 hours of run time from a single filling.
By pairing these two pieces of equipment, you'll get the perfect package for events that use a temporary marquee. It will provide all the required heating and hot potable water (with a plate pack) you need from one, space-saving package!
Call us on 1800 247 266 to find out how our packaged boiler solutions can support your business.
| Nominal Output (Heating) | 40 - 104 kW |
| Nominal Output (Hot Water) | 25 - 90 kW |
| Temperature Range (Heating) | 60-90°C |
| Temperature Range (Hot Water) | 25-65°C |
| Power Supply | 240v 1ph N+E 50Hz |
| Running Current | 8 Amps |
| Plug Type | 16A 3 Pin BS3434 |
| Maximum Working Pressure (Heating) | 3 Bar |
| Maximum Working Pressure (DHW) | 5 Bar |
| Safety Valves (Heating) | 3 Bar |
| Safety Valves (DHW) | 5 Bar |
| Heat Exchanger | Yes (DHW) |
| BMS Outputs | Yes |
| Time Clock | Yes |
| Frost Protection | Yes |
| Design Flow (max) | 4,300 L/h @ 45°C |
| Pump Capacity | 4,500 L/h @ 0.6 Bar |
| Variable Temperature Control | Yes |
| Height of Flue Above Ground Level | 2,750mm |
| Expansion Vessel | 50 ltrs |
| DHW Circulation System | Yes |
| Flexible Hose Connections | Storz Twist Lock |
| Water Connections (Heating) | Flow / Return 2” Storz |
| Water Connections (DHW) | Flow / Cold Feed 1” Storz |
| Recirculation Connection | Return 1” Storz |
| Fuel Type | Diesel Oil or Natural Gas |
| Fuel Connections External | Oil Tank or 1” Gas Train |
| Fuel Consumption | 12.5 L/h(Oil) |
| Noise Level | 45 dBA @ 10 M |
| Handling Options | Fork Pockets, 4 Point Lifting Eyes |
| Dimensions (WxDxH) | 1,950 x 1,980 x 1,930 mm |
| Weight | 980 kg |
