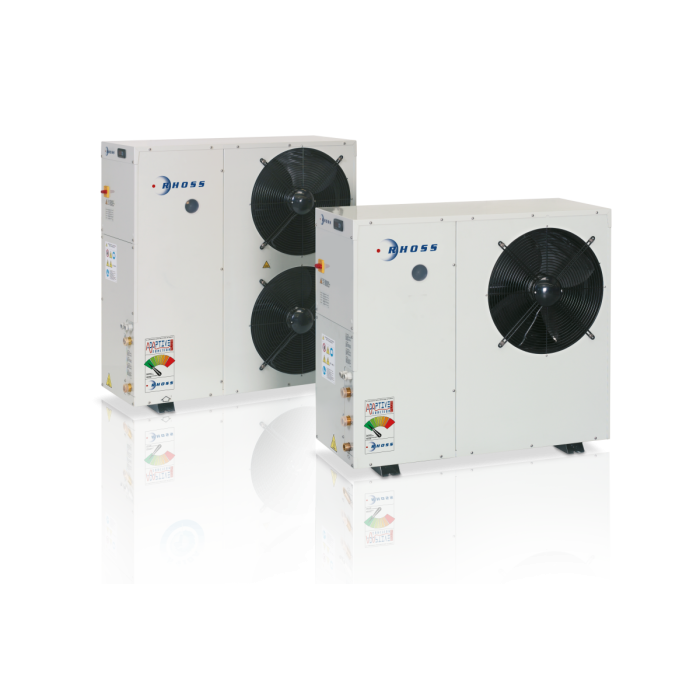

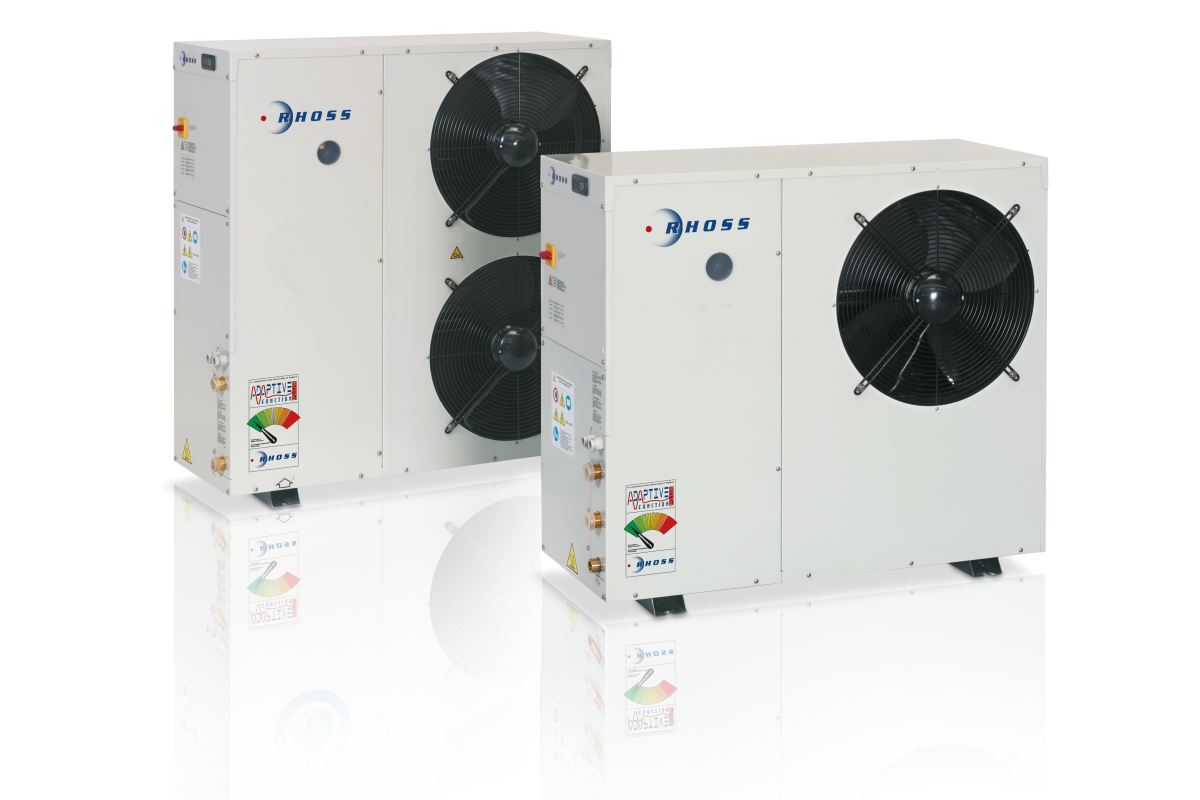

5kW Chiller Air Cooled
| Detail | 5kW Chiller |
| Chiller Cooling Capacity | 5.01 [kW] |
| Inlet Temperature | 12 [°C] |
| Outlet Temperature | 7 [°C] |
| Ambient | 35 [°C] |
| Compressors | 1 |
| Compressor Type | Scroll |
| Capacity Steps | 1 |
| Noise Level | 46 [dB(A)] @ 10 M |
| Circuits | 1 n. |
| Control | Automatic Programme |
| Buffer Tank Capacity | 32 L |
| Water Connection | 1" BSP |
| Water Pump | Yes |
| Refrigerant Type | R407c |
| No of Circuits | 1 |
| Evaporator Type | Plate |
| No of Circuits | 1 |
| Design Flow | 9.4 [m³/h] |
| Pressure Drop | 93 [kPa] |
| Condensor Fan Quantity | 1 |
| Fan Type | Axial |
| Electrical supply | 230 V / 1 ph / 50 Hz, N |
| Power Input | 2.2 [kW] |
| Full Load Amps | 10.5 A |
| Unit Connection | 16A 1ph |
| Dimensions (L x H x D) | 990 x 905 x 380 mm |
| Dry Weight | 127kg |
