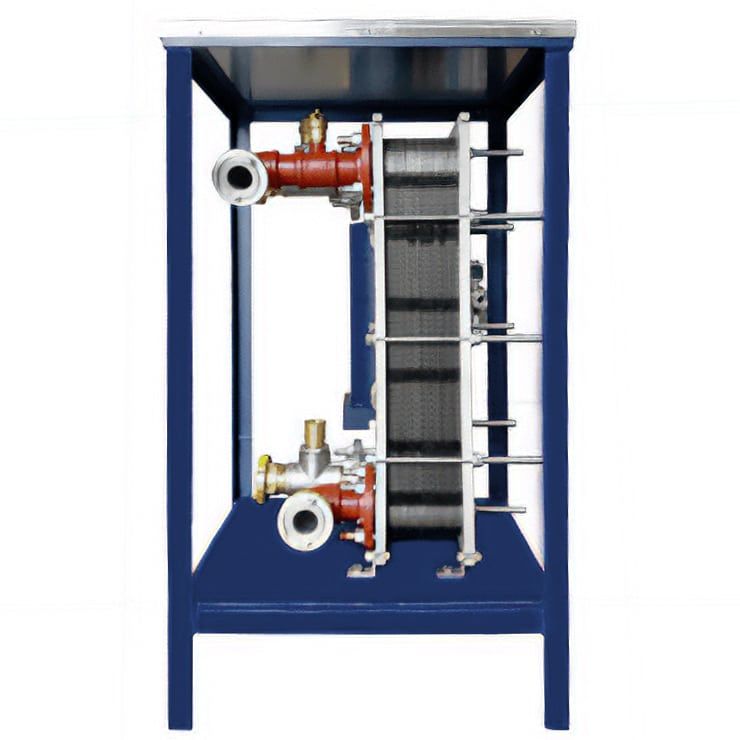

600kW Plate Heat Exchanger DHW
| Model | 600kW Domestic Hot Water Plate Heat Exchanger |
| Heating Capacity | 390-600 kW |
| DHW Inlet Temperature | 35°C |
| DHW Outlet Temperature | 60°C |
| Boiler Inlet Temperature | 80°C |
| Boiler Outlet Temperature | 59.5°C |
| Pressure Drop | 0.5 bar |
| Temperature Range | 30-90°C |
| Variable Temperature Control | Yes |
| Max Working Pressure (Safety Valve) | 4.5 Bar |
| BMS Outputs | Yes |
| Time Clock | Yes |
| Frost Protection | No |
| Flow | 9,800 L/hr @ 45°C |
| Pump Capacity | 22,000 L/hr @ 1 bar |
| Expansion Vessel | 300 L |
| Fuel Type | Diesel Oil/Natural Gas |
| Fuel Connection (Oil) | 0.5" Flat Face Hydraulic |
| Fuel Consumption (Oil) | 60 L/hr |
| Fuel Connection (Gas) | 2" |
| Temp. Gas Pipe Size | 2" |
| Gas Trac Maximum Length | 9 m |
| Flexible Hose Connections | Flow/Return |
| Flexible Hose Connection Type | Storz Twist Lock |
| Water Connections | 3" |
| DHW System | External |
| Power Supply | 415V 3Ø 50Hz |
| Plug Type | 16A 5 Pin BS4343 |
| Running Current | 10 A |
| Noise Level | 45 dBA @ 10 m |
| Handling Options | Fork Pockets/4 Point Lifting Eyes |
| Dimensions (W x D x H) | 3,410 x 2,430 x 2,580 mm |
| Height of Flue Above Ground | 3,500 mm |
| Dry Weight | 3,200 kg |
