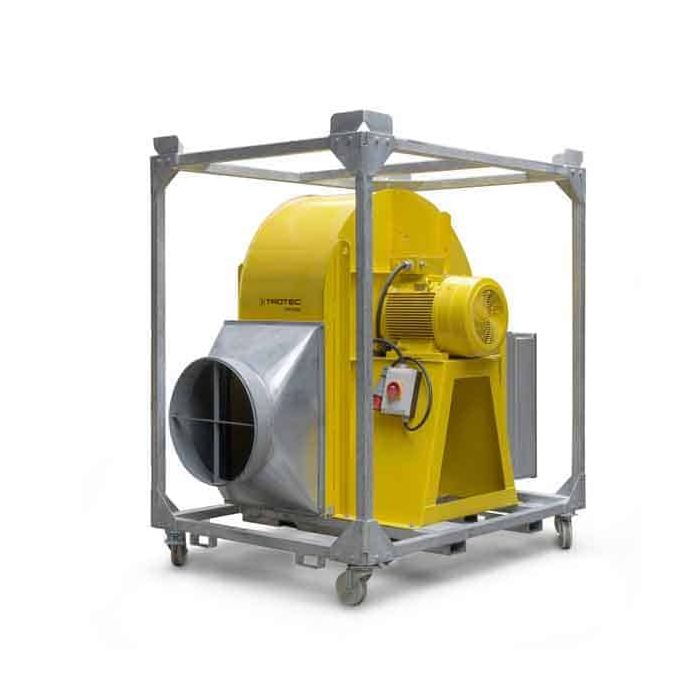

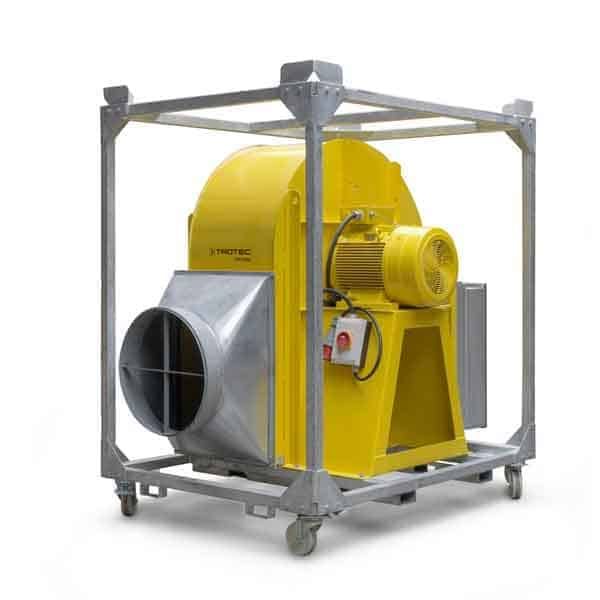

TFV 1200 Heavy Duty Radial Fan

Correct ventilation is not only an important prerequisite for a pleasant working environment, but work protection provisions and regulatory directives also make it mandatory in many areas.

The high-pressure centrifugal, portable industrial fan, TFV 1200, is well-equipped for proper room ventilation and removing harmful fumes & substances like paint and varnish vapours, welding smoke, dust particles, carbon monoxide, nitrogen oxide, carbon dioxide and steam out of the room.

It is the optimal solution for all applications where air has to be transported over long distances: it transports up to 54,000 m³/h of air, even over longer distances and with back pressure, and because it is extremely robust its able to handle harsh working environments.

See more: Industrial Air Movers

  • Extremely robust model with a high flow rate
  • Splash-proof type A (IP55)
  • Can also be used in very dusty surroundings
  • Fan motor situated away from the main air flow
  • Robust and stable characteristic curves & constantly high pressure
  • Frequency regulator for an infinite adjustment of fan performance
Free discharge air volume54,000 m³/h
Air discharge speed38 m/s (136.8 km/h)
Fan stagesinfinitely variable (frequency regulator)
Air pressure max.2,650 Pa
Max. transport medium temperature80 °C
Surrounding conditions-20 °C to 40 °C
Input voltage400 V / 50 Hz (65 A)
Requisite protectionCEE 64 A
Power input37 kW
Intake ductaccessories (ø 630 mm)
Sound level (distance 1.5 m)106 dB (A)
Housingsteel, powder-coated, 2K paint
Dimensions (with frame)2,005 x 1,650 x 2,300 mm
Weight750 Kg
