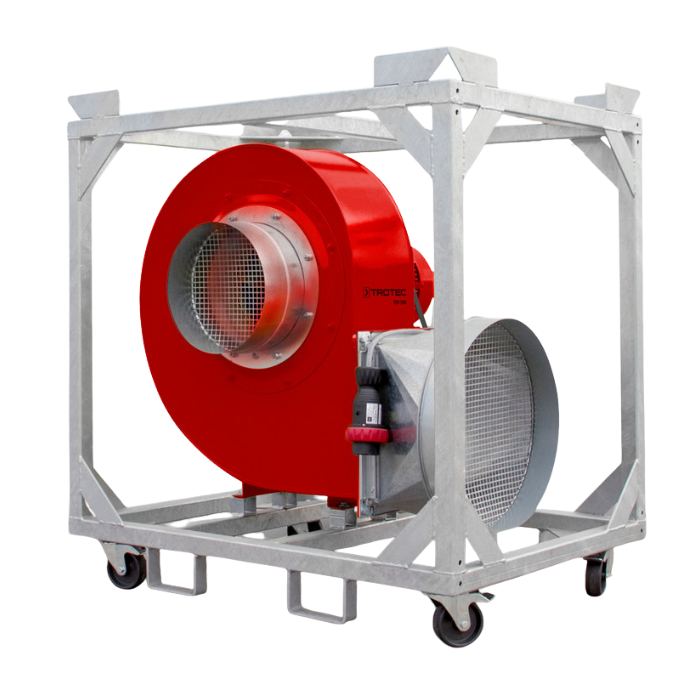

TFV 300 Ex Rated Radial Fan
The TFV 300 Ex high-pressure radial fan is built for hazardous zones where fully ATEX-certified, robust and reliable ventilation equipment is essential. It delivers up to 7,000 m³/h airflow with strong static pressure for long duct runs, multiple bends and confined industrial spaces.
Safe for Zones 1, 2, 21 and 22, this Ex-rated radial fan supports manifold ventilation applications such as tank cleaning, refinery shutdowns, silo ventilation and any environment where explosion protection is mandatory. The durable steel construction and Ex-approved components ensure consistent performance in demanding conditions and frequent site moves.
We provide the unit with the optional galvanised steel frame on wheels, complete with fork-lift pockets, which supports easy handling and fast deployment on and off site.

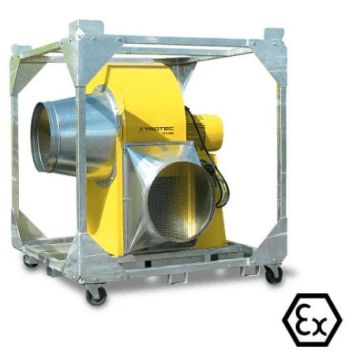

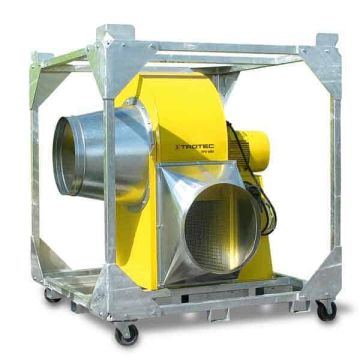

Available as a standard model or do you need more capacity for large industrial airflow requirements? The heavy-duty TFV 900 Ex is also available.
| Free discharge air volume | 7,000 m³/h |
| Air discharge speed | 27 m/s (97.2 km/h) |
| Fan stages | 1 |
| Air pressure max. | 2,800 Pa |
| Max. transport medium temperature | 60°C |
| Surrounding conditions | -20°C to 40°C |
| Input voltage | 400 V / 50 Hz (16 A) |
| Power input | 4 kW |
| Sound level (distance 3 m) | 71 dB (A) |
| Ex class | II3G, zone 2, T4 |
| Housing Protection | steel, powder-coated, IP55 |
| Dimensions (with frame) (W x L x H) | 700 x 1,000 x 830 mm |
| Ex class | II3G, zone 2, T4 |
| Weight | 150 kg |
