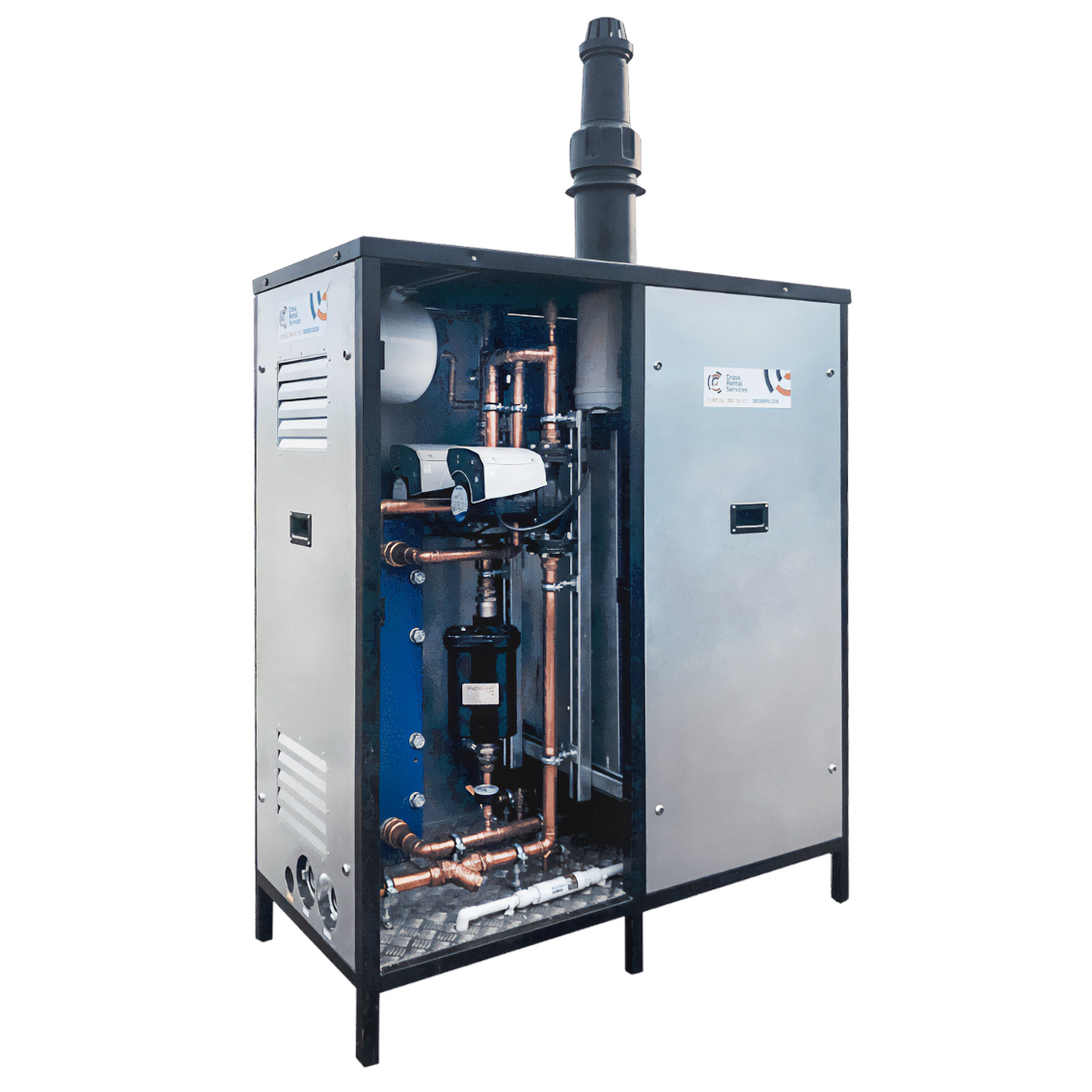

100kW Condensing Boiler
| Nominal Output (Heating) | 100 kW |
| Temperature Range | 35-85°C |
| Power Supply | 240v 1ph 50Hz |
| Running Current | 4 A |
| Plug Type | 16A 3 Pin BS3434 |
| Maximum Working Pressure (Heating) | 4 Bar |
| Time Clock | Yes |
| Frost Protection | Yes |
| Design Flow (max) | 10,700 L/h @ 1 Bar @ 45°C |
| Variable Temperature Control | Yes |
| Expansion Vessel | External |
| DHW System | External |
| Flexible Hose Connections | Storz Twist Lock |
| Water Connections (Heating) | Flow / Return 2” Storz |
| Fuel Type | Natural Gas |
| Fuel Connections External | Gas 2” |
| Noise Level | 34.3 dBA @ 10 M |
| Handling Options | Pallet Truck / Fork Truck / Hiab with Straps |
| Dimensions (WxDxH) | 610 x 1,410 x 1,700 mm |
| Height of Flue Above Ground Level | 2,410mm |
| Dry Weight | 747 kg |
