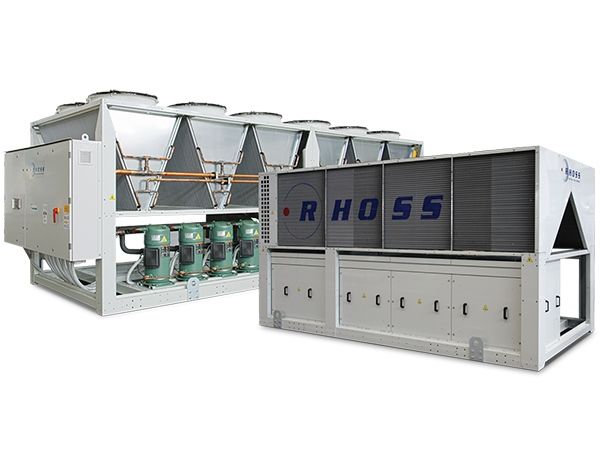

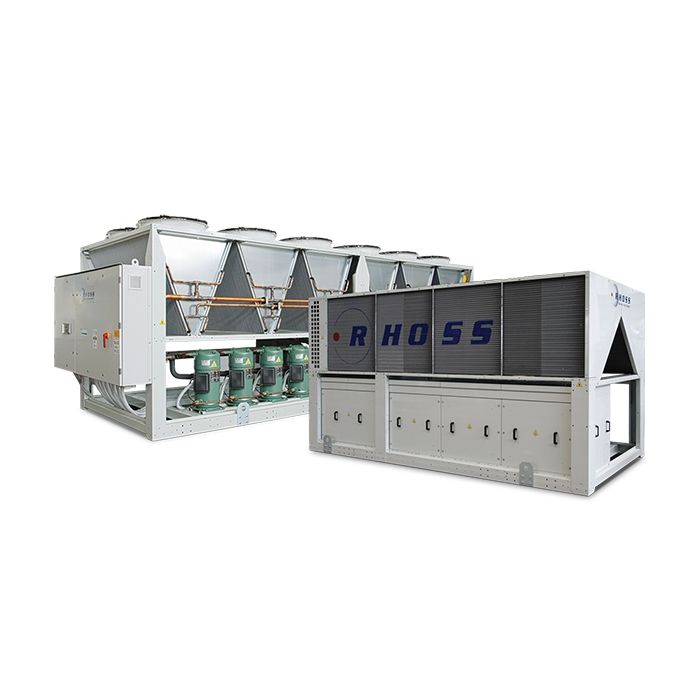

750kW Chiller

The 750kW air cooled chiller is a powerful and reliable cooling solution suitable for a wide range of industrial and commercial applications, from air conditioning to process cooling. With its advanced control system and energy-efficient design, it provides precise temperature control and reduces energy consumption, making it an ideal choice for those looking to improve their operations while lowering costs. This powerful chiller uses multiple scroll compressors and compact plate heat exchanger, 2 independent refrigeration circuits, and a built-in circulating pump. Simple to use microprocessor and display.

See more: Process Cooling

Detail750kW Chiller
Performance DataChiller Cooling Capacity @ 27°C 742 [kW]
Inlet Temperature12 [°C]
Outlet Temperature7 [°C]
Compressors6
Compressor TypeScroll
Capacity Steps6
Noise Level76 [dB(A)] @ 1 metres
Circuits2 n.
DIMENSIONS AND WEIGHTS
Dimensions (L x H x D)5,940 x 2,260 x 2,450 [mm]
Dry Weight3,675 [kg]
ControlAutomatic Programme
Buffer Tank Capacity1,000 [L]
Water Connection6" Bauer Male & Female
Water PumpYes, Single 5.5kW
RefrigerantTypeR410a
GlycolSuitableYes
No of Circuits2
EvaporatorTypePlate Type HXE
No of Circuits2
ElectricalElectrical supply400 V / 3 ph / 50 Hz
Power Input206 [kW]
Full Load Amps505.0 [A]
