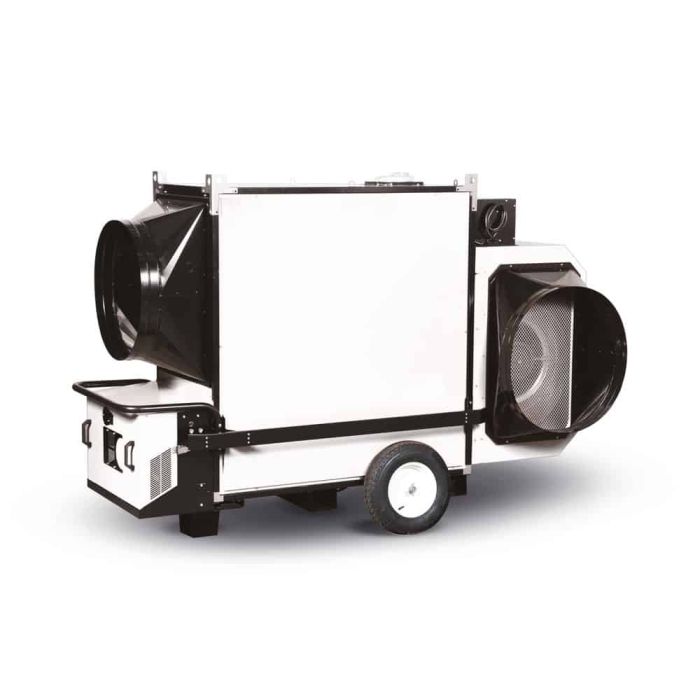

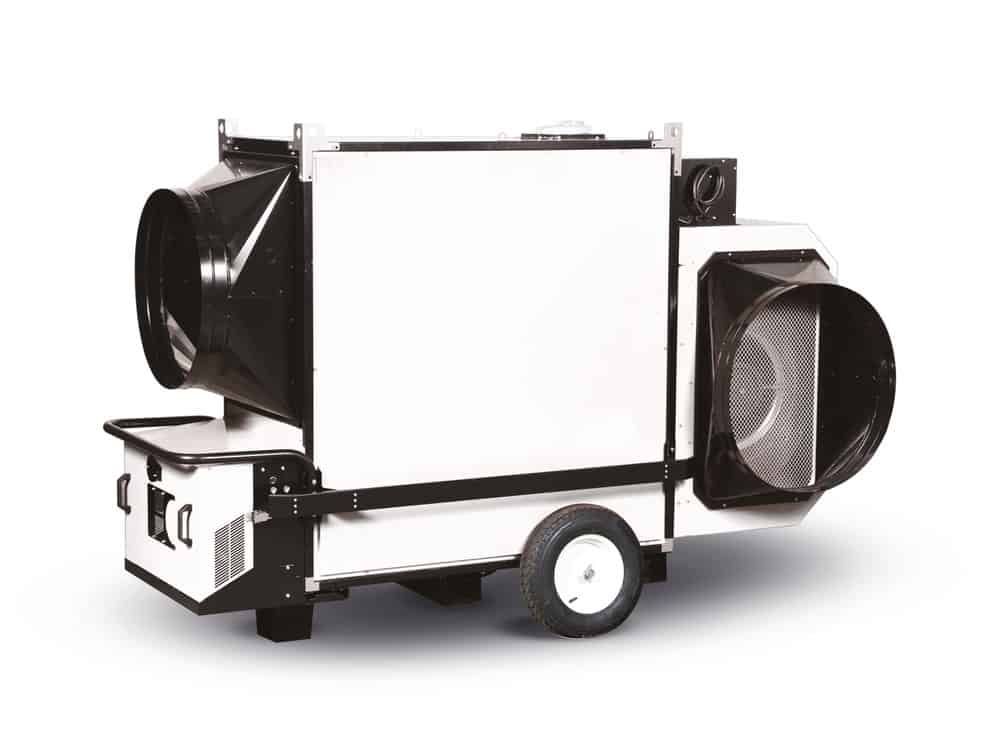

Titan 235 Indirect Heater 227kW
| Functional principle | Method of heating indirect |
| Amount of air | Stage Max. [m³/h] 20,000 |
| Air pressure | Stage Max. [Pa] 500 |
| Fan Type | Centrifugal |
| Nominal heat output | Stage Max. [kW] 227 |
| Temperature increase | Stage Max. [°C] 47 |
| Electrical values | Mains connection 400 V/50 Hz |
| Electric connection | Connection plug 3 Phase 32A 5 Pin BS4343 |
| Fuel consumption | Stage Max. [l/h] 18.65 |
| Dimensions (WxLxH) mm | 1042 x 2630 x 1840 |
| Hose connector | Diameter [mm] 700 |
| Max Duct | Length [m] 100 |
| Sound values | Distance 2 m [dB(A)] <69 |
