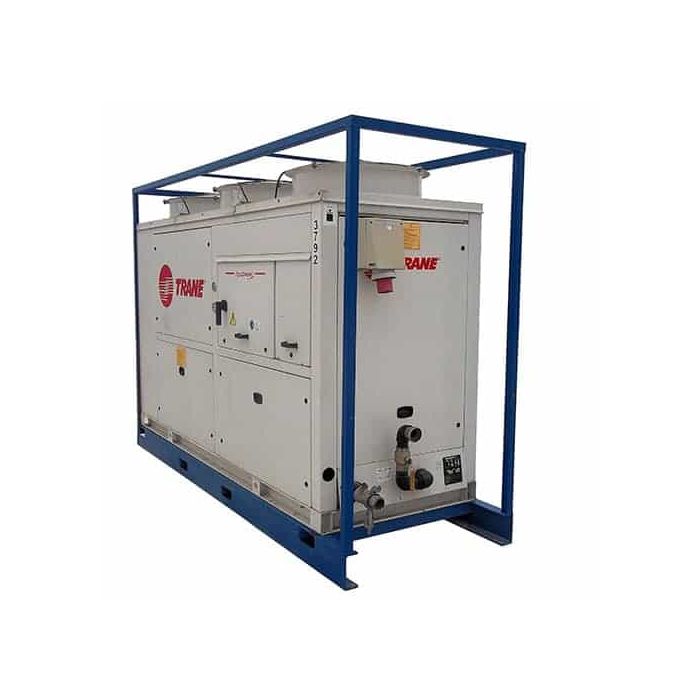

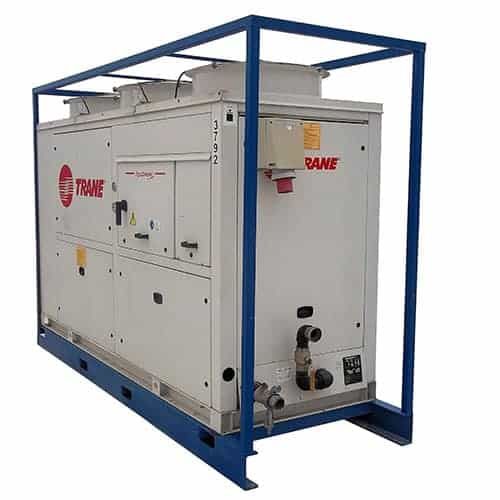

100kW Trane Heat Pump Chiller
| Nominal Cooling Duty | 98.9 kW |
| Design Operating Temperature In/Out | +12/7 °C |
| Design Operating Ambient Temperature | +30°C |
| Heating Capacity | 99.2 kW |
| Design Operating Temperature In/Out | +40/45°C |
| Design Operating Ambient Temperature | +7°C |
| Number of Compressors | 3 |
| Compressor Type | Scroll |
| Capacity Steps | 2 |
| Evaporator Type | Brazed Plate |
| Water Volume | 10.5 L |
| Number of Evaporators | 1 |
| Max System Pressure | 158 kPa |
| Pressure Drop | 39 kPa |
| Number of Fans | 3 |
| Fan Type | Propeller |
| Total Volume | 37300 m³/h |
| Max Air Volume | 10.36 m³/h |
| Refrigerant Type | R407c |
| Circuits | 1 |
| Power Supply | 400v 3ph +E 50hz |
| Max Running Amps | 90 A |
| Start Amps | 236 A |
| Electrical Connection | 5 Pin 125 Amp |
| Water Connection | 2” Bauer |
| Noise Levels | 55dBA @ 10 M |
| Dimensions (W x D x H) | 1,200 X 3,760 x 2,350 mm |
| Weight | 1,182 kg |
