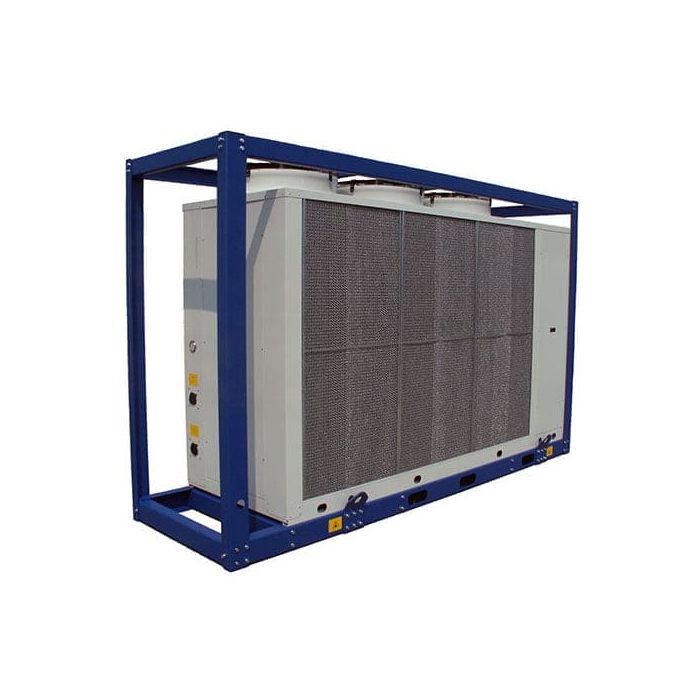

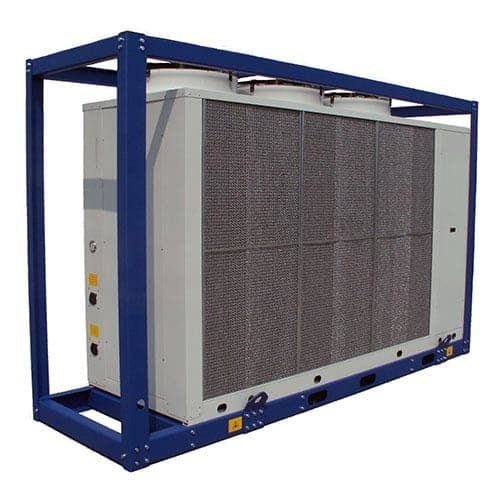

150kW Heat Pump Chiller
| Nominal Cooling Duty | 150 kW |
| Cooling Design Duty | 103.2 Kw |
| Inlet Temperature | +12°C |
| Outlet Temperature | +7°C |
| Nominal Heating Duty | 150 kW |
| Heating Design Duty | 105.6 kW |
| Inlet Temperature | +50°C |
| Outlet Temperature | +55°C |
| Ambient | +30°C |
| Compressor Power | 33.5 kW |
| EER | 2.57 |
| Noise Levels | 54 dBA @ 10 Metres |
| Control | Automatic Programmer |
| Power Consumption | 44.9 kWh |
| Water Connections | 2” Bauer Male & Female |
| Buffer Vessel | 300 Litre |
| Water Pump | Lowara FHE32-200/55P |
| Compressors | 2 |
| Compressor Type | Scroll |
| Capacity Steps | 2 |
| Refrigerant Type | R410a |
| No. of Circuits | 1 |
| Evaporator Type | Plate |
| Number of Circuits | 1 |
| Design Flow | 36 m³/h |
| Pressure Drop | 56 kPa |
| Max System Pressure | 87 kpa |
| Fan Quantity | 3 |
| Fan Type | Axial |
| Air Max Volume | 10.8 m³/s |
| Supply | 415vAC 3Ø, N + Eth |
| Electrical Connection | 5 Pin 125A BS4343 |
| Full Load Amps | 85 A |
| Start Amps | 275.8 A |
| Dry Weight | 1,510 Kg |
| Dimensions (WxLxH) | 1,160 x 3,500 x 2,300 mm |
