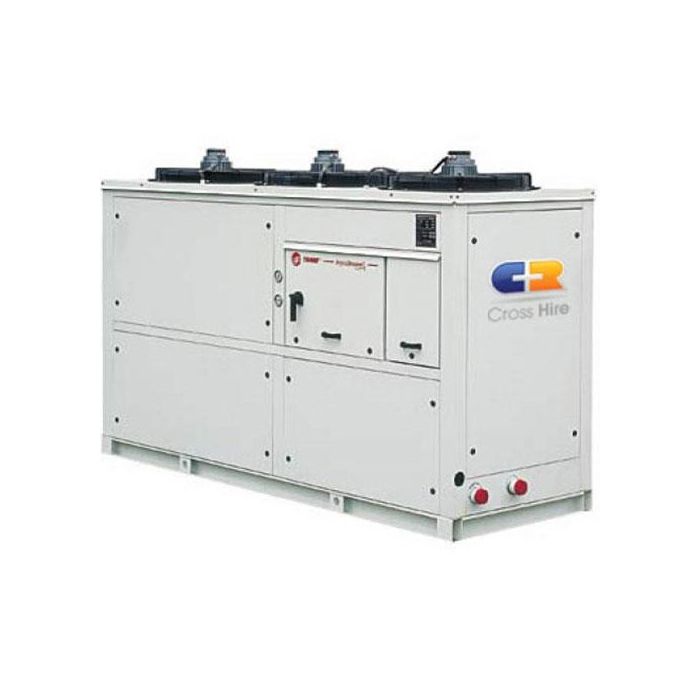

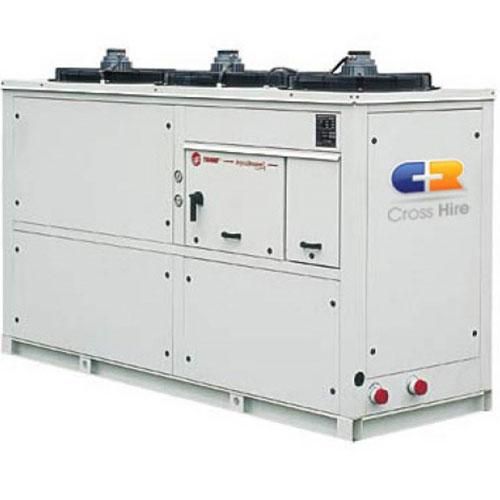

200kW Trane Heat Pump Chiller
| Product | 200kW Trane Heat Pump Chiller |
| Capacity | 200 kW |
| Nominal Cooling Duty | 195.1 kW |
| Nominal Heating Duty | 198.4 kW |
| Inlet Temperature | 10°C |
| Outlet Temperature | 15°C |
| Ambient Temperature | 30°C |
| EER | 2.57 |
| Design Flow | 6.8 L/s |
| Pressure Drop | 20.3 kPa |
| Maximum System Pressure | 8 bar |
| Condenser Fan Quantity | 6 |
| Condenser Fan Type | Axial |
| Maximum Air Volume | 20.3 m³/s |
| Power Supply | 415 V / AC 3Ø, N + Eth / 50 Hz |
| Running Amps | 160 Amps |
| Power Consumption | 72.4 kWh |
| Full Load Amps | 160 Amps |
| Compressors | 6 |
| Compressor Type | Scroll |
| Noise Level | 62 dBA @ 10 M |
| Control | Automatic programmer |
| Water Connection | 4” BauerMale & Female |
| Number of Circuits | 2 |
| Evaporator Type | Plate |
| Dry Weight | 2,280 kg |
| Dimensions (W x L x H) | 3,400 x 2,260 x 2,100mm |
